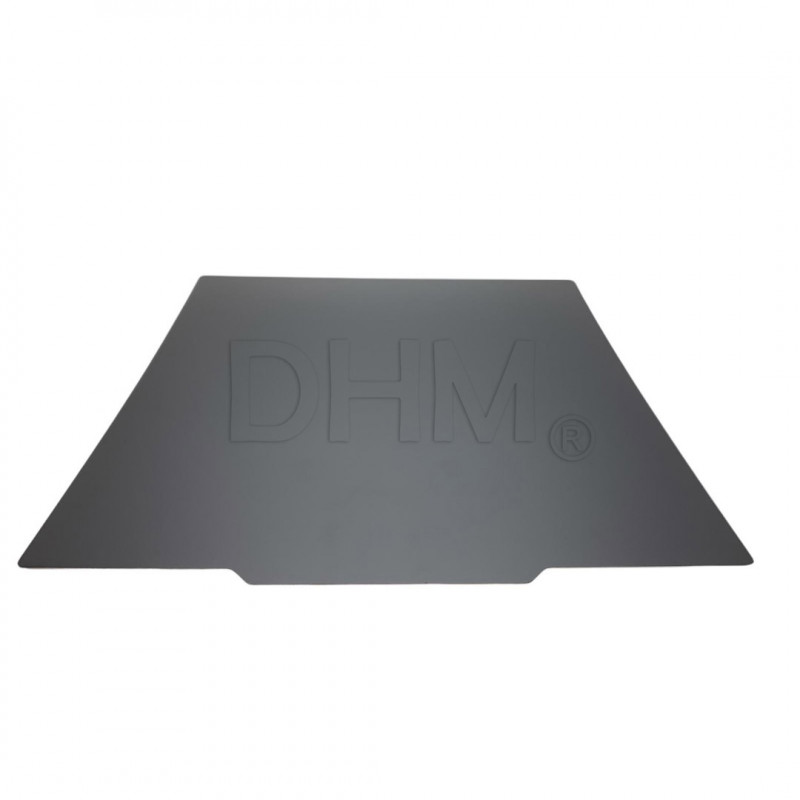

Plate with smooth PEI surface on both sides 355x355mm - Black Edition Voron 2.4 Trident

The Double Sided PEI Coated Sheet (Smooth) is a flexible and removable printing plate made of 0.5 mm thick steel and coated on both sides with Ultem 1000 PEI, a durable and strong material.

With a size of 355x355 mm, this plate fits perfectly on small 3D printers Voron and is easily attached by magnets.

Key features:

• Double-sided with smooth PEI coating, ideal for a wide range of filaments such as PLA, PETG, ABS, TPU and polycarbonate.
• Flexible and removable: easy to detach, simply flex the plate slightly to remove prints after they have cooled.
• Providesexcellent adhesion, especially for prints with corners or small areas of the first layer.
• Scratch-resistant: can be used with metal squeegees, although it may have cosmetic scratches.
• 0.5 mm thicksteel that provides strength, with strong adhesion to printer magnets.
• Fast heating performance, reducing waiting time between prints.

This plate provides excellent adhesion during printing and simplifies removal of templates, ensuring an efficient and uncomplicated printing experience.

Advantages:

• Excellent adhesion for materials such as PLA, reducing the risk of part detachment, even with small first layers.
• Durability: the surface is durable and can be reused for a long time, with proper maintenance.
• Easy removal of prints: after cooling, you can flex the plate to easily remove pieces.
• Easy maintenance: requires little effort to keep the printing surface clean and functional.

Disadvantages:

• PETG, PC, TPU and other materials can adhere too strongly to the smooth surface, risking damage; you need to use spray, glue stick or Magigoo as a protective barrier.
• Bubbles under PEI: Small bubbles may appear under the PEI surface over time, but these do not affect the quality of the print and tend to disappear.
• Wear over time: adhesion may decline after 1-2 years of heavy use, but can be renewed with light sanding with fine-grit sandpaper (600-1000).

Care and Maintenance:

• Regular cleaning with 90%+ isopropyl alcohol or denatured alcohol, using a microfiber cloth.
• If the surface becomes too smooth, it can be lightly sanded with fine-grit sandpaper to restore adhesion.
• Do not use acetone or other strong chemicals that could damage the surface.

Considerations:

• When changing plate type (e.g., from smooth to textured), the Z- value should be adjusted-offset.
• For materials such as PETG, ABS, TPU, it is important to use a protective barrier to prevent damage to the smooth surface.
• Bubbles or small defects such as dents may appear in PEI but do not affect the quality of printing.
• Not covered by warranty: normal surface wear and tear is not covered by warranty, as it is considered consumable

Package contains: 1 x Plate with smooth PEI surface on both sides 355x355mm - Black Edition Voron 2.4 Trident

Magnetic sheet for fixing is to be purchased separately.
