Profiles structural and accessories

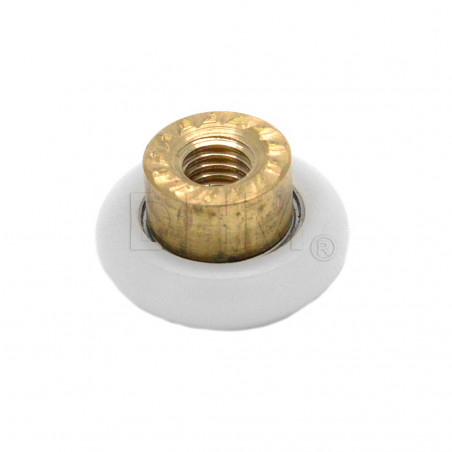

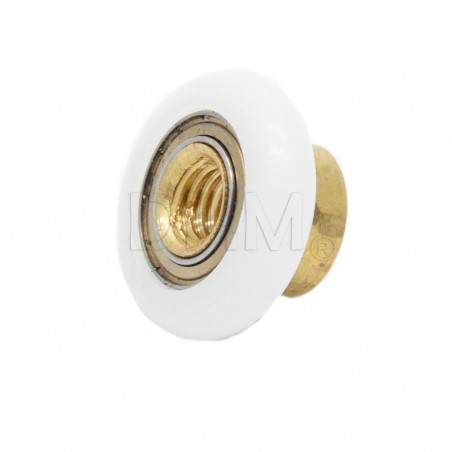

Name: K800 trolley wheels nylon Ø19 mm 3D printing Kossel
SKU: 05060101
Price: 3.8 EUR
Availability: InStock

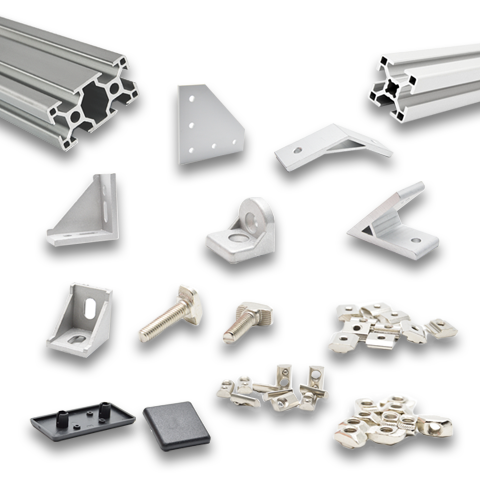

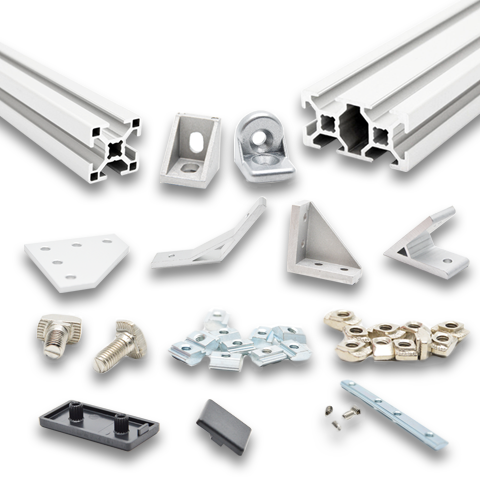

Structural profiles and accessories

Compass DHM projects supplies mechanical components for industrial automation and 3D printing, including structural profiles (modular aluminum profiles).
The wide range of components, the online cutting configurator with immediate quotation, and the shipping within 24 hours allow a fast and reliable supply.

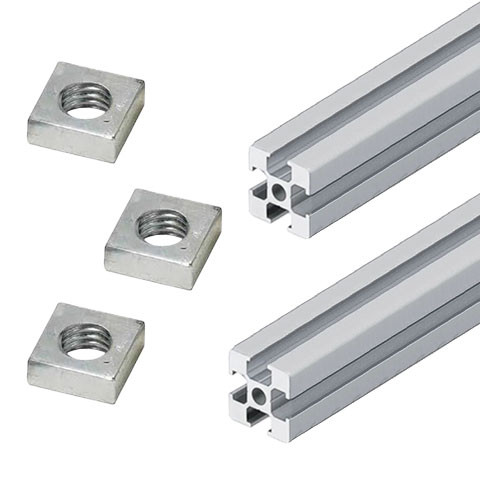

The raw aluminum structural profile is ideal for all those applications ranging from construction for industrial carpentry to that of hobby; they are suitable for the mechanical construction of modular structures. Find ready-to-ship aluminum profiles:

series 5 - slot 6 mm - module 20
series 6 - slot 8 mm - module 30
series 8 - slot 10 mm - module 40

All the series of profiles have slots to ensure a stable fixing even with high static and dynamic loads, and foreseen for the use of all the accessories necessary for the construction. Profiles can be available in various formats:

slot on 1 side
slots on 2 opposite sides
slots on 2 consecutive sides
slots on 3 sides
slots on 4 sides

The aluminum profiles allow for a modular system. Anodized aluminum profiles require neither mechanical processing nor welding for their joining. The grooves on the profiles are made with an extrusion process obtaining highly respectable precision and tolerances: nuts, plugs, various anchors can be inserted.

Here are the main advantages of aluminum profiles:

Modularity: modular and modular aluminum alloy profiles that offer the possibility of infinite combinations
Customization: our online cut-to-size service is available 24/7 for an immediate quote and a quick purchase
Innovation: through CAD management, the systems created using profiles make it possible to create innovative solutions for the industry.

Questions(FAQs)

How do I choose the correct series (20, 30 or 40)? ...

The choice depends on the load and the length of the spans. Series 20 is optimal for compact structures up to 1 metre in length. For machine tools or workbenches under mechanical stress, we recommend series 30 or 40 to minimise bending.

Are the profiles compatible with accessories of other brands? ...

Yes, our profiles follow international extrusion standards. Simply check the size of the keyway (e.g. 6mm keyway for Series 20 or 8mm keyway for Series 30) to ensure compatibility of nuts and accessories.

Can I drill or thread the profiles? ...

Absolutely. The central hole in the profile is designed to be threaded (e.g. M6 for the 20 series or M8 for the 30 series), allowing adjustable feet, castors or profiles to be screwed together head to head.

What is the advantage of T-Slot profiles over other systems? ...

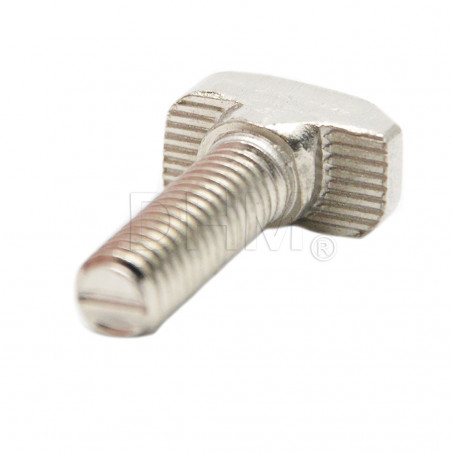

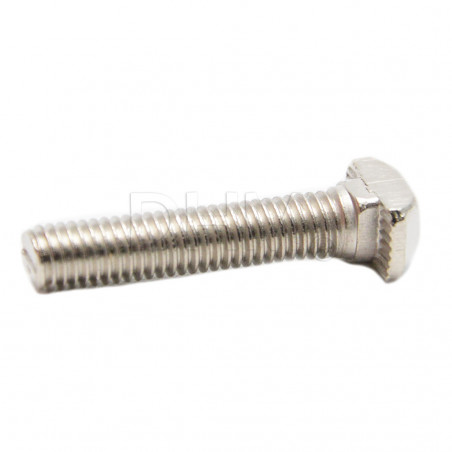

The T-Slot system is designed for maximum structural strength. The shape of the slot allows the use of hammer nuts, which, when tightened, create an extremely solid connection through friction and pressure, making the structure resistant to vibration and dynamic loads, ideal for machine tools and industrial frames.

Can I mount movement accessories on your profiles? ...

Of course. Although ours are structural T-Slot profiles, it is possible to integrate linear movement systems using linear recirculating ball bearing slides or supported shafts that are screwed directly onto the profile groove, guaranteeing greater sliding precision than roller systems.
