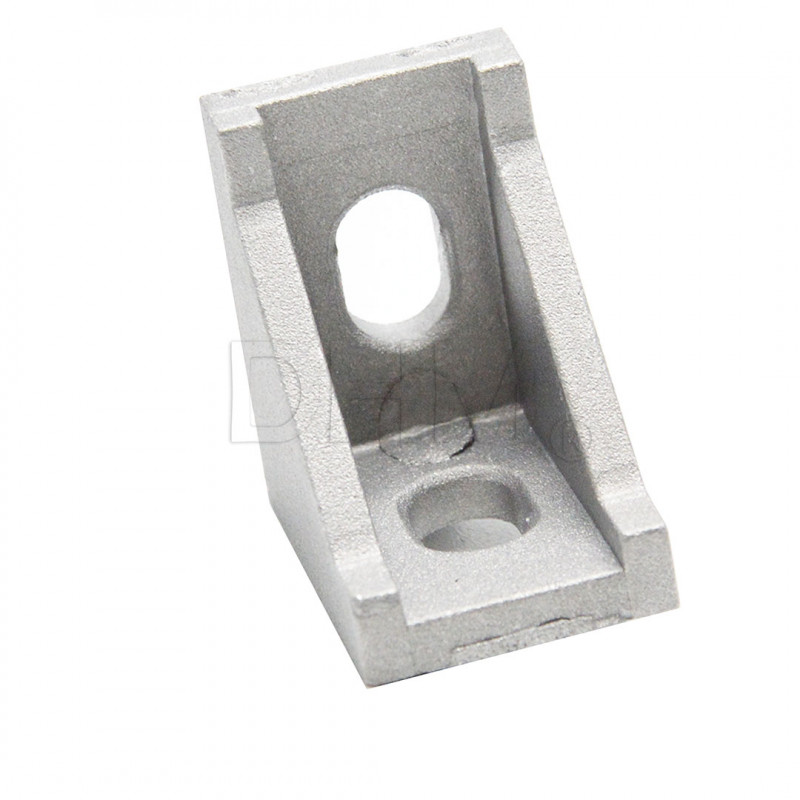

Bracket 20*28 with 90° fins for profile 5 series 2020

Name: Bracket 20*28 with 90° fins for profile 5 series 2020
Brand: DHM
SKU: 14030104
Price: 3.3 EUR
Availability: InStock

Reference: 14030104

€3.30

VAT included Shipping excluded

Immediate Availability

Dispatch in 24/48H

Product Details
Brand DHM
Reference 14030104
-- Stocks: Immediate Availability *

*Regular shipments throughout the country
Description
Package contains: 1 x 20*28 mm bracket with 90° fins for 5 2020 series profile

Aluminum profiles can be connected together using a bracket. This connection involves inserting the nuts into the profile slots and fixing them with screws. The bracket in question is a 90° model with side fins that prevent possible rotation. The feature of the brackets with fins is that the protrusions to be inserted into the slots allow the simple pressure of the nuts on these to hold them in place. They feature slotted holes to allow them to be mounted on slots in different positions.
Washers are recommended for installation. They allow L or cross connections.

The dimensions in the photo, since these are products created by die casting, have a tolerance of +/-1mm
Read more
Specifications in the data sheet inside the image gallery. For other information please contact us.

The item you receive may differ in some features from the one pictured, depending on the production batch. Despite this, the functionality is maintained.
