Kraken V1.0 Motherboard for 8-Axis 3D Printers - BIGTREETECH

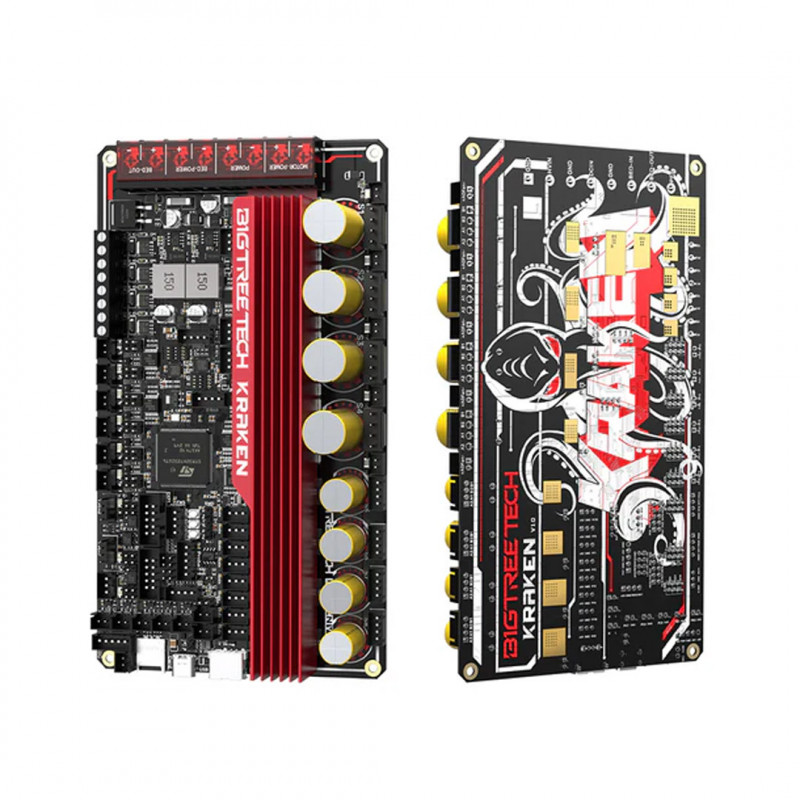

The BIGTREETECH Kraken V1.0 board is an advanced 32-bit motherboard designed for large-scale 3D printers. Developed by Shenzhen Biqu Technology Co., Ltd. this powerful board is optimized for high voltage and high current stepper motor control, simplifying complex connections and ensuring efficient performance. With a sleek design featuring integrated heat sinks and ID screen printing, the Kraken combines functionality and aesthetics.

Key Features:

• Effortless Motor Control: Driver integrated 8*TMC2160 support 24V-60V, ensuring smooth operation without the need for additional installations.
• Dual Printhead Support: Powered by the H723 chip, it enables simultaneous dual printhead functionality for increased productivity.
• Versatile Connectivity: Includes interfaces for integration with SBC, such as BTT PI and Raspberry Pi, offering flexible control options.
• Precise Temperature Management: Supports dual MAX31865 and PT100/PT1000 for precise temperature control.
• Expanded Interface Capabilities: Dual CAN interfaces for versatile 3D printing configurations.
• Enhanced Protection: Equipped with an e-fuse circuit for robust motherboard protection.
• Firmware Support: Compatible with Klipper, Marlin, RRF (RepRapFirmware).

Interfaces Introduction.

• USB Power: When Kraken is powered, the power indicator light turns red, signaling a normal power supply. VUSB is the power selection pin, which needs to be connected with a jumper only when powering the board via USB.
• Driver Stepper Motors: Driver TMC2160 integrated in SPI mode. No jumper is needed to select the mode; use SPI mode directly. When using sensorless homing, insert the jumper; otherwise, leave it disconnected. DIAG connection as follows:
• PWM Fan Voltage Selection: Set the output voltage to 5V, 12V or 24V via a jumper. The output current of the fan interface is 1A. Be sure to confirm the voltage supported by the fan before selecting to avoid damage, for which our company is not responsible.

Possible Connections:

• MicroProbe V2.0
• Automatic Shutdown (Relay V1.2)
• Display EXP1+EXP2 and MINI12864 V2.0
• RGB
• Servo
• I2C Wiring (Temperature and Humidity Sensor)
• 2-Pin Fan
• Proximity Switch
• 4-Pin PWM Fan and Water Cooling Connection
• Raspberry Pi

Ideal printers on which to install Bigreetech's Kraken V1.0 board:

• Voron2.4
• Voron Trident
• Vzbot
• HevORT
• RatRig V-CORE 3

Package contains: 1 x BIGTREETECH Kraken V1.0 Motherboard for 8-Axis 3D Printers
