BIGTREETECH EBB SB2240 CAN V1.0 for Voron StealthBurner

EBB SB2240 CAN is an extruder breakout board designed by the BIQU Technology Co., Ltd. team for Voron StealthBurner. It allows communication via USB or CAN port, greatly simplifying wiring.

What are the differences between SB2209 CAN and SB2240 CAN?

• The integrated driver: the SB2209 CAN board has an integrated driver TMC2209, while the SB2240 has an integrated driver TMC2240
• Modes of operation of driver: the TMC2209 operates in UART mode, while the TMC2240 is the latest driver TMC ultrasilent chip that operates in SPI mode.

SB2240 CAN board features:
CAN bus communication: included 3-meter cable supporting up to 10° peak current
Can be used with Klipper
Built-in ADXL345: allows use of input shaping function for perfect printing
MCU: STM32G0B1CBT6 32bit 64Mhz
Driver Integrated TMC2240
Ideal for quick installation in the StealthBurner extruder assembly for 3D printers VORON
Allows PT100 or PT1000 support thanks to MAX31865
Integrated temperature sensor
Supports connection to MicroProbe, BLtouch, proximity sensors such as PL08N for print bed leveling
Presence of an SPI-Out port for connection of external accessories
5569-2 connector for heated cartridge supporting up to 5A
Presents 3 ports for connecting 5V, 12V or 24V fans: 2 2-pin outputs and 1 4-pin output
Also allows the installation of a secondary screen on the StealthBurner due to the 4-pin CAN bus connection

Installation instructions are in Bigtreetech's official github:
https://github.com/bigtreetech/EBB/tree/master/EBB%20SB2240_2209%20CAN

Package contains:

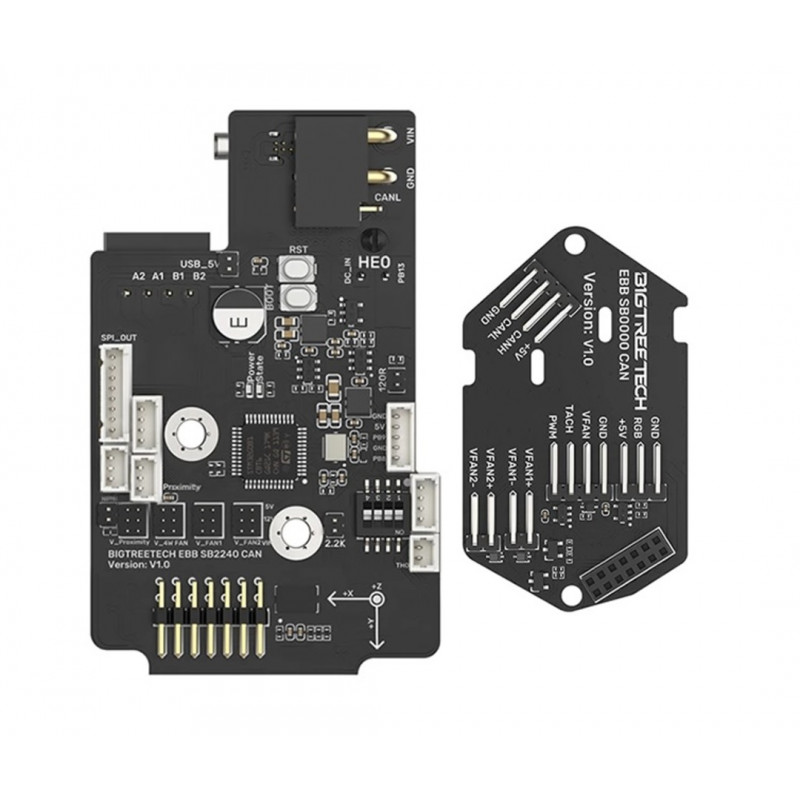

1 x BIGTREETECH EBB SB2240 CAN V1.0 for Voron StealthBurner
1 x BIGTREETECH EBB SB0000 CAN
1 x CAN bus cable 3 meters
1 x Heatsink
1 x Crimp terminal set
1 x Jumper cap set
2 x Cable ties
1 x Set of fixing screws
