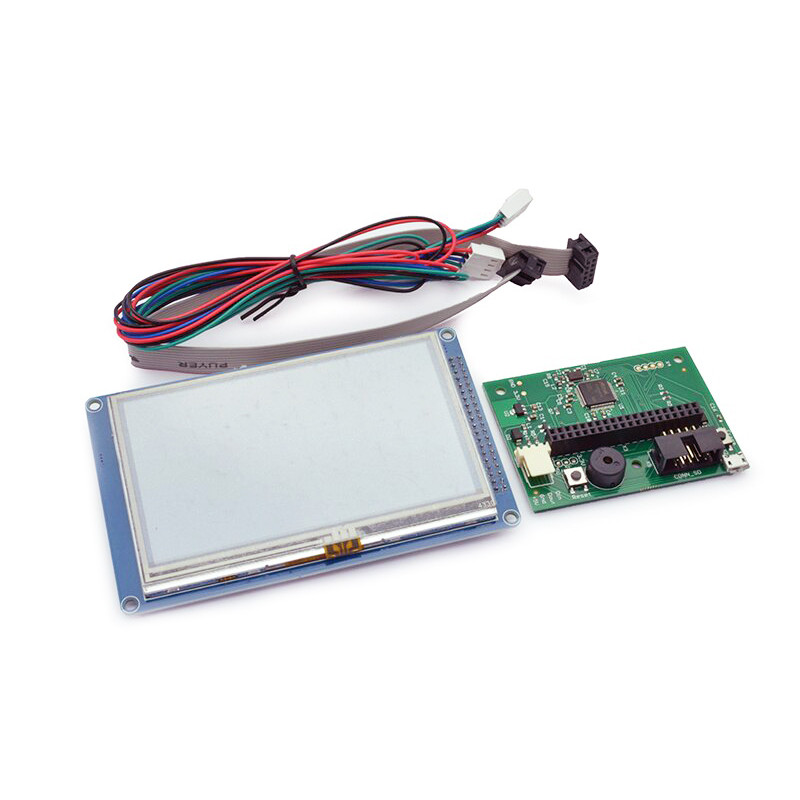

PanelDue is a color touchscreen controller for Duet motherboards and other cnc and 3D printer control boards that support it.
It arrives already configured and with firmware installed to work with all Duet 2 and Duet 3 family motherboards. Simply connect it to one of the Duet motherboards via the included cable and it is ready to use.
The control board and firmware support 3 screen sizes: 4.3 ", 5" and 7 ", at two resolutions: 480 × 272 (4.3-inch display) or 800 × 480 pixels (5- and 7-inch displays).
The lower resolution of the 4.3" display means that not as much information can be displayed on the screen, such as a maximum of 4 extruders.
Connection specifications:
5V power supply from the 2-wire motherboard.
Asynchronous 2-wire serial interface with 3.3 V signal level (input tolerates up to 5 V).
Connections for the micro SD card built into the screen PCB are available via a 10-way ribbon cable 300 mm long (maximum recommended length). This connection is not necessary for screen operation, in fact the SD here is in addition to the SD on the motherboard that already serves as memory for the machine's gcode files.
The 4-wire cable to connect PanelDue to the Duet 2 or Duet 3 motherboard ( 2 wires for serial connections and 2 wires for power supply) is supplied with the screen (it has a length of about 1m).
For technical specifications please visit the wiki dedicated to Duet products: https://duet3d.dozuki.com/ - https://docs.duet3d.com/ Here you can find technical details and installation examples. To share opinions and questions, including technical ones, you can consult the dedicated forum: https://forum.duet3d.com/
The item you will receive may differ in some features from the one depicted in the photo, depending on the production batch. Despite this, functionality is maintained.
