This Bondtech CHT Volcano nozzle increases the fusing capacity of your hotend, allowing you to print faster and save time. It also improves the adhesion between layers of your 3D prints, creating stronger parts.
Features:
- Brass body
- Nickel coating
- 5 pieces per package
- Sizes included: 0.40, 0.60, 0.80, 1.0, 1.2 mm
- Optimized for 1.75 mm filament
- Compatible with 2.85 mm filament
- Requires 6 mm wrench
Core Heating Technology is patented.
In Europe: Registration number EP3445568A1 - Publication date: 01-12-2021
In the United States: Registration number US11712847B2 - Publication date: 01-08-2023
3D printer nozzles made of metal, with one or more holes, designed to increase the standard circular area of heating walls.
Advantages of the coated nozzle Bondtech CHT Volcano
- Increased melting capacity due to increased heating wall surface area
- Increased flow (Flow Rate) between 25% and 65% (see image with test data)
- Excellent quality/price ratio
- Very high precision machining
- Brass nozzle with nickel-plated surface
- Conforms to the nozzle standard: Volcano (M6×1×14.5×21)
- Flow improvements may vary: results depend on hardware, materials and print settings
Advantages of Bondtech CHT technology
The Bondtech CHT nozzles divide the filament into 3 thinner filaments, allowing the material to fuse from the inside. As a result, fusing occurs faster and higher flow rates can be used.
Core Heating is a patented technology
Registration Number: EP3445568A1
Metal 3D printer nozzles with one or more holes designed to increase the surface area of the heating walls.
Benefits of nickel coating
A nickel coating is applied to coated brass nozzles to protect them from corrosion, erosion, and abrasion.
Nickel-plated nozzles offer:
Increased corrosion resistance
Lower coefficient of friction → smoother material feed
Delayed adhesion of plastic to the nozzle surface
Recommended Materials.
Use this nozzle with the following rigid materials: PLA ABS HIPS PC TPE Nylon PETG ASA PP PVA
For technical and abrasive materials, we recommend using other nozzles from our range.
Nozzle sets for different materials
We recommend having multiple sets of nozzles because:
Using different materials with the same nozzle causes internal deposits.
These deposits can cause clogging.
It is advisable to replace the nozzle each time you change materials.
NOTICE: Avoid cold replacement of nozzles Bondtech CHT Volcano
Heat the heating block to 280 °C (or at least above 250 °C) before removing or tightening any Bondtech CHT nozzle.
Use a maximum torque of 1.5 Nm.
This Bondtech CHT nozzle is compatible with the following hotend/blocks:
- E3D Volcano blocks
- Other Volcano type blocks
- Artillery Sidewinder X1 and X2
- Anycubic Vyper
- Creality K1 & K1 Max
- FLSUN Super Racer
- Artillery Genius Pro
- Anycubic Kobra & Kobra Max
- Lulzbot TAZ MOARstruder
- Others compatible with Volcano...

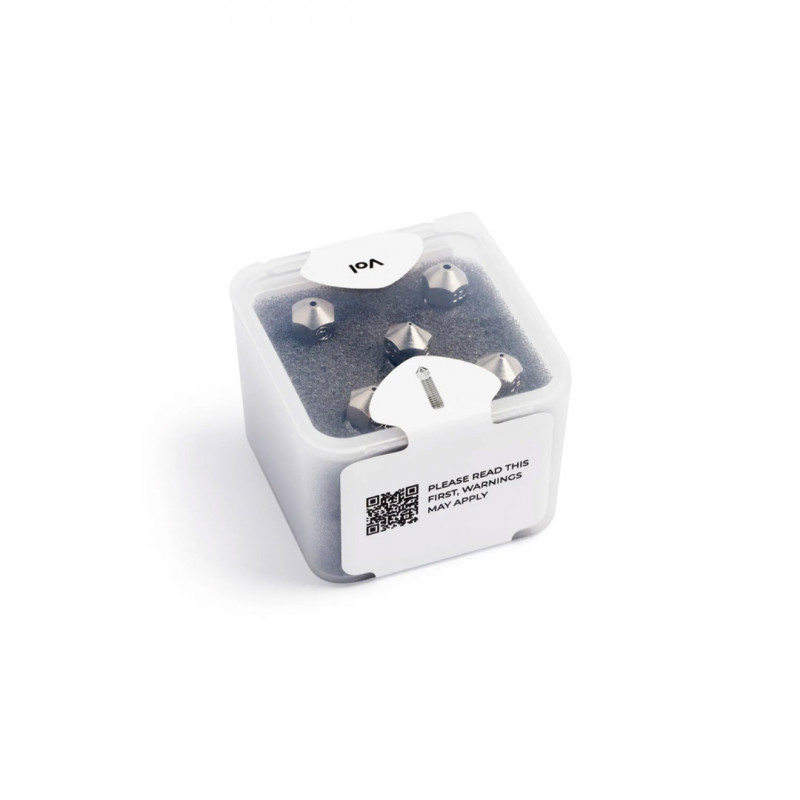

Package contains: 5 x CHT Vol Coated Brass Nozzle - Bondtech (0.40, 0.60, 0.80, 1.0, 1.2 mm)
