E3D ToolChanger and Motion System is an advanced search platform that allows up to four multi-material/multi-function tools (such as lasers, pick & place tools, extruders, inspection cameras, and anything else you can imagine) to be used during a single print job. You can choose between a 4 x Bowden V6 tool package or a 4 x Direct Hemera tool package. Extruders and PTFE tubes are included in this package along with the motion system, tool changing mechanism, and Duet connectivity of your choice.
Duet control options
- WiFi: connect remotely to your ToolChanger via computer, laptop or tablet.
- Ethernet: is your machine in a garage or shed with an unstable WiFi signal? Ensure a reliable connection by connecting your computer or laptop to ToolChanger.

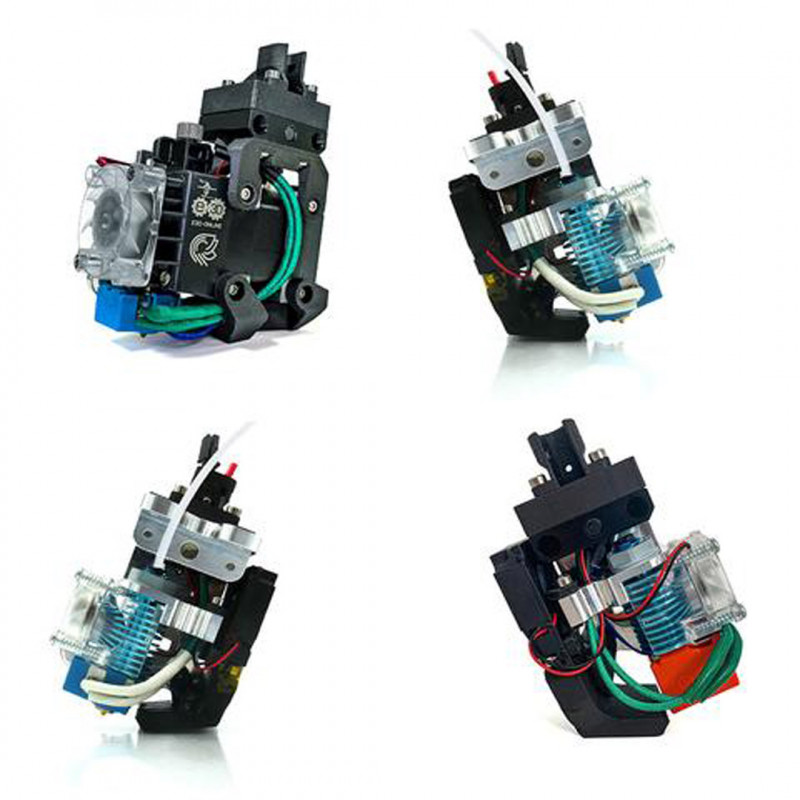

Printhead
- Hemera XS: Harness the full power of Hemera with direct-drive toolheads, which provide first-class filament control with short filament paths and uncompromising grip. Perfect for challenging materials such as TPE and TPU
Motion System
- A Fabtotum-inspired CoreXY Motion system provides a fast, precise and robust platform. With no flying motors, no crossed belt paths, and an incredibly light moving mass.
- The Motion System is built for high speeds and rapid acceleration. Gates original Moon motors and 2GT belts produce fast, reliable and long-lasting performance.
- To ensure the high accuracy of the Motion System, the three main axes are pre-assembled, allowing a simple assembly experience without additional tensioning.
ToolHead
The ToolChanger ToolHead is the central mechanical component of the tool changing system. Bolted directly onto the Motion System's X-Carriage, it provides the pickup and delivery action that allows the use of several ToolHeads using the standardized E3D toolholder plate.
Electronics
The Duet2 wiring kit provides a well-managed plug & play solution for running Motion System, ToolChanger ToolHead and up to four V6 tools Bowden HotEnd. Although designed for Duet2's WiFi/Ethernet, it should be generally applicable to any microcontroller capable of controlling four tools.
Note that:
The 400W ToolChanger power supply is not suitable for use with the E3D Varipower platter, if you plan to use aVaripower platter you will need to obtain a power supply with higher wattage.
Main features of the motion system:
- CNC-milled aluminum top plate.
- CoreXY Fabtotum-style movement system.
- Original Hiwin rails and carriages.
- Original Gates belts, pulleys and idlers.
- Partially assembled.
- Construction volume of 200 mm x 300 mm x 300 mm.
Key features of the ToolChanger ToolHead:
- Six-point exact constraint kinematics.
- High-tension spring-loaded clamping mechanism.
- Integrated Z-axis limit switch.
Main features of high-temperature heated bed:
- 110V AC or 240V AC (depending on region)
- Maximum operating temperature: 200°C
- 3mm aluminum plate (alloy: 6000 series)
- 104-GT2 thermistor
Hemera XS Tool Kit package includes:
- 1 x motion system
- 1 x Duet cable package
- 1 x ToolChanger ToolHead
- 4 x Hemera tool upgrade kit
- 4 x Hemera XS extruders (24V)
- 80 x PTFE units
- 1 x 4 mm borosilicate glass 300 x 200 mm
- 1 x DueX5
- 1 x SSR
- 1 x 110V or 240V high-temperature heated platen
- 1 x Duet WiFi or Ethernet main board
- 1 x 24V switching power supply
- 10 x clips
Package contains: 1 x ToolChanger & Motion System Bundle inc Tools & Hemera Extruders - E3D
Specifically a ToolChanger & Motion System Bundle inc Tools & Hemera Extruders will be shipped in the configuration chosen when ordering.
