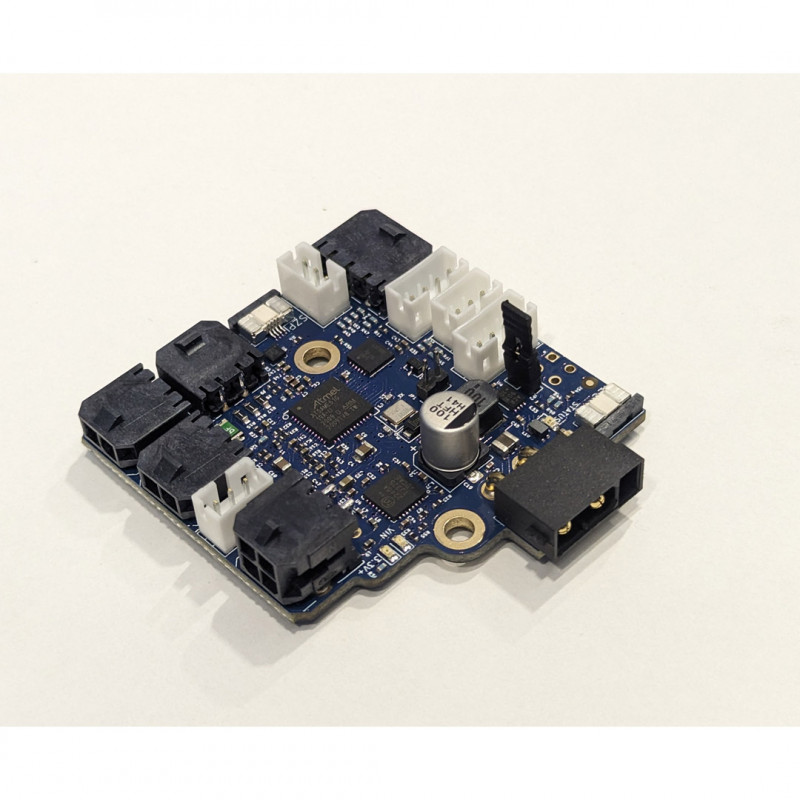

Duet 3 Roto Toolboard - CAN-FD expansion for E3D extruder Revo Roto

Package contains: 1 x Duet 3 Roto Toolboard

Technical specifications for version V1.0

• Processor: ATSAME51G19A
• Processor equipped with: 32 bit and 120 MHz ARM Cortex M4F
• Network/communications Interconnection: CAN-FD to CAN-FD Duet 3 bus
• Driver stepper On board: 1 x TMC2240
• Features of driver stepper : Peak current up to 1A, microstep interpolation from any setting to x256, stall detection (note that further thermal testing may allow higher extrusion current for extruders other than Revo Roto, which should not exceed 600mA current)
• High-current outputs: 1 x 3.4A, VIN voltage only (80W at 24V)
• Thermistor/PT1000 inputs: 3 inputs, 2 optimized for 100K thermistors and PT1000 sensors, 1 used for SZP coil temperature
• Medium-current outputs: 1 x 4-pin (VIN voltage-designed for cooling parts with 2, 3 or 4-pin fans) and 1 x 3-pin (5V compatible with Roto heatsink fan cooling with 2 or 3-pin fans). Both outputs are PWM controlled with tachometer input.
• Inputs/outputs: 3 on-board I/O connectors for endstops, switches, filament monitor, Z probe. 1 connector for a switch or optical proximity sensor.
• Accelerometer: Integrated LIS2DW accelerometer.
• Inductive sensor: Integrated LDC1612 inductive sensor for scanning Z probe
• Power supply monitoring: VIN voltage signaling.

For technical specifications, we invite you to visit the wiki dedicated to Duet products: https://docs.duet3d.com/en/Duet3D_hardware/Duet_3_family/Duet_3_Roto_Toolboard - https://docs.duet3d.com/ Here you can find technical details and installation examples. To share opinions and questions, including technical ones, you can consult the dedicated forum: https://forum.duet3d.com/

The item you will receive may differ in some features from the one depicted in the photo, depending on the production batch. Despite this, functionality is maintained.
