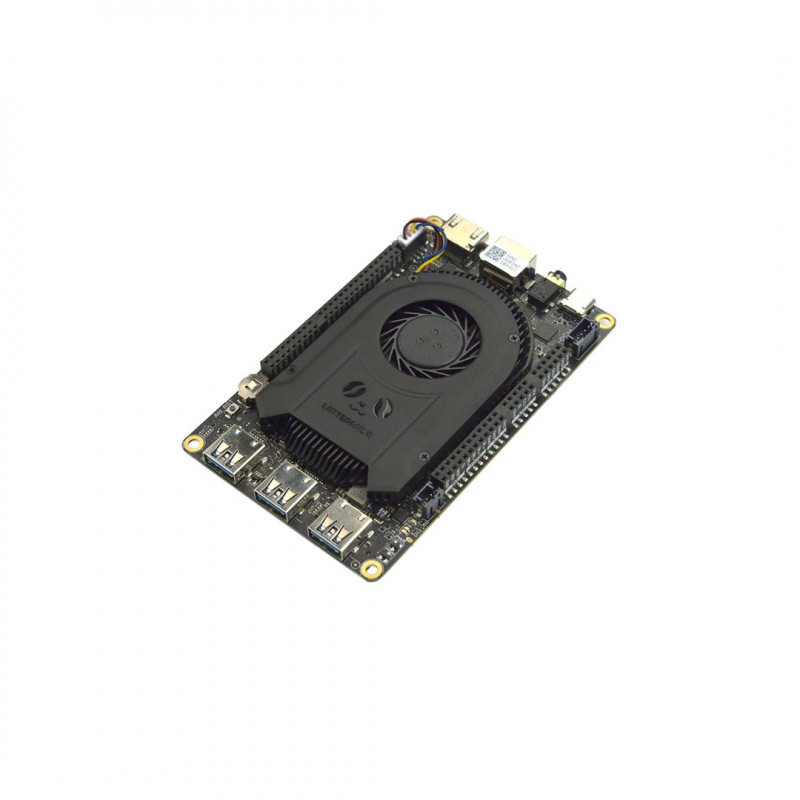

LattePanda 3 Delta 864 - Pocket-sized Windows / Linux Single Board Computer with Win10 Enterprise Li

The LattePanda 3 Delta single-board computer now features a 2.5G Ethernet port for superior performance!

ULTRA PERFORMANCE IN COMPACT FORM FACTOR

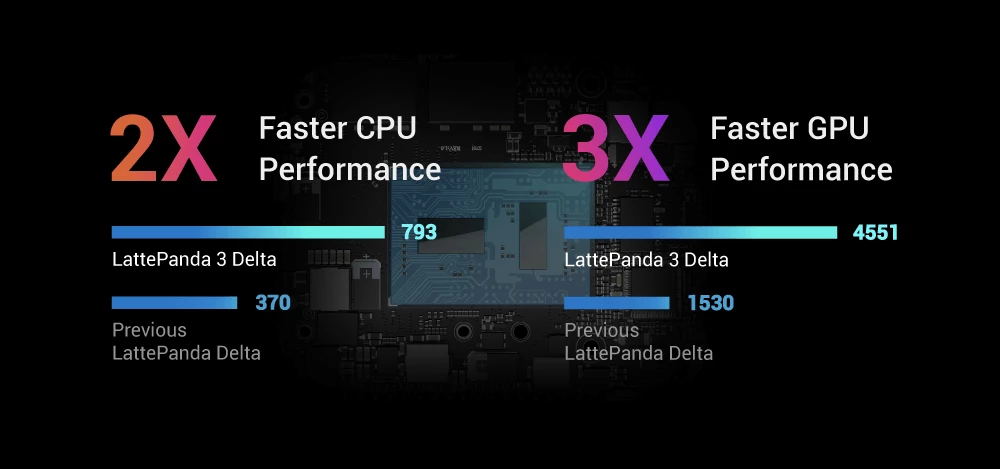

LattePanda 3 Delta is an x86 single-board computer powered by the quad-core Intel N5105 processor. With Intel Turbo Boost technology, it can reach speeds of up to 2.9 GHz. Compared with the previous LattePanda 2 Delta, the CPU speed is doubled, while the GPU speed is tripled. It is perfectly suited for tasks such as image processing, edge computing, automation control and more.

POCKET SIZE

The ultrathin LattePanda 3 Delta, a single-board computer running Windows 10, easily fits into devices with limited space, offering high computing power without taking up much space.

The size, interfaces and layout of the LattePanda 3 Delta are very similar to those of its predecessor, the LattePanda 2 Delta, ensuring a smooth migration or upgrade of projects.

FASTER MEMORY, GREATER CAPACITY

The LattePanda 3 Delta features 8 GB of high-speed LPDDR4 memory at 2933 MHz, twice as fast as the LattePanda 2 Delta, ensuring smooth performance when processing large amounts of data and multitasking. In addition, eMMC storage capacity has been upgraded to 64 GB, doubling that of the previous version, allowing it to handle more professional software and data without the need for additional memory.

COMPATIBLE WITH WINDOWS AND LINUX

LattePanda 3 Delta comes with the Windows 10 operating system preinstalled and offers full compatibility with both Windows 11 and various Linux operating systems.

TRIPLE VIDEO OUTPUT

The LattePanda 3 Delta x86 single-board computer offers three video outputs: HDMI, Type-C and eDP, all supporting dual 4K HDR. This ensures not only the display of high-definition, lifelike images, but also allows multiple displays to be managed, showing identical or different content on each.

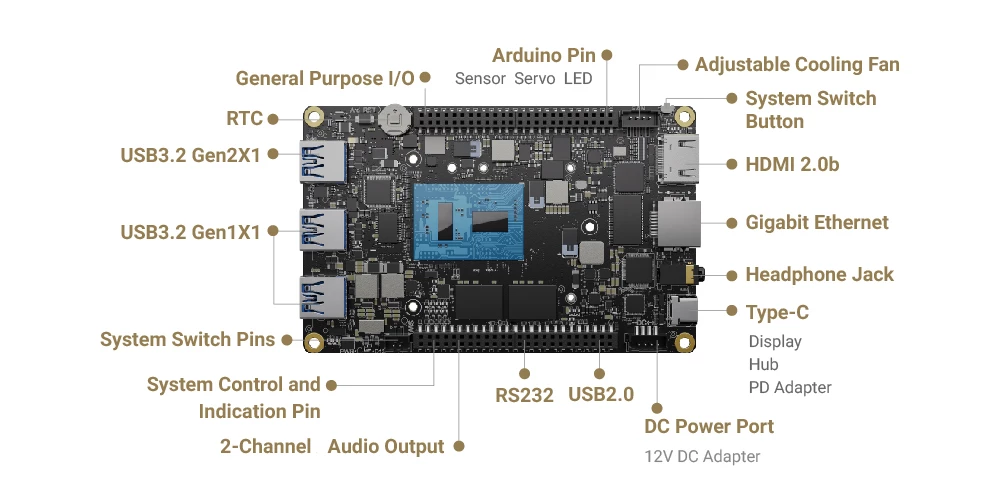

EXPANDABLE AND COMPREHENSIVE INTERFACES

This industrial single-board computer is equipped with numerous interfaces, including USB, HDMI, RS232, GPIO, Ethernet, eDP and others. These versatile interfaces meet a wide range of industrial needs.

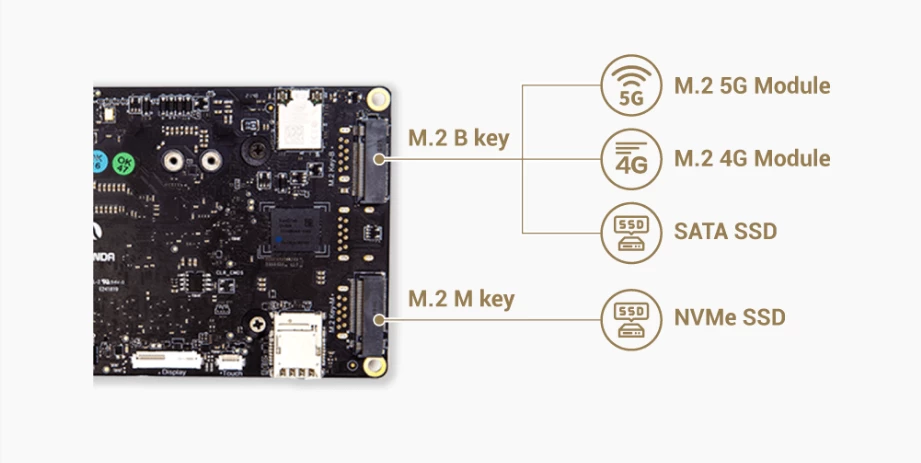

In addition, the LattePanda 3 Delta x86 SBC has M.2 B Key and M.2 M Key slots, allowing expansion with M.2 NVMe or SATA SSDs, as well as installation of 4G/5G communication modules.

PROFESSIONAL AND IMMEDIATE TECHNICAL SUPPORT

To meet the needs of industrial users, the LattePanda team offers fast and efficient technical support services. Whether it's installation and configuration, troubleshooting or system integration, LattePanda's dedicated technical team is always available to ensure stability and smoothness for your projects. For assistance, contact techsupport@lattepanda.com.

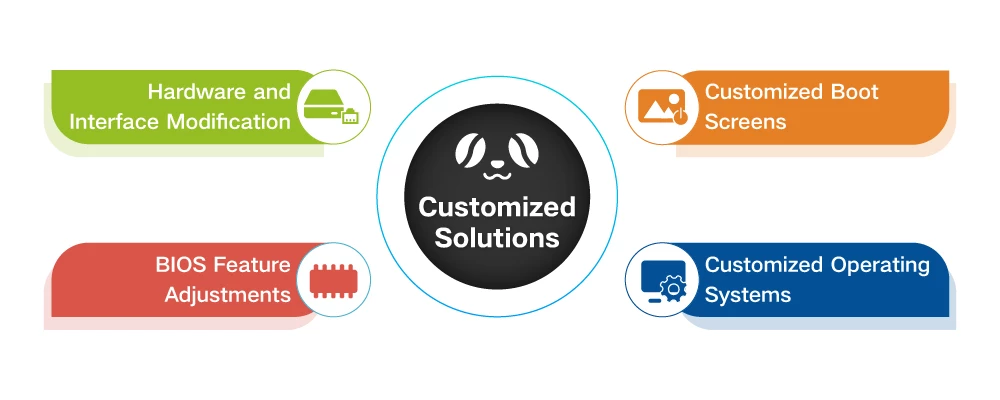

CUSTOMIZED SOLUTIONS

The LattePanda single-board computer series supports special customizations, including hardware and interface modifications, custom boot screens, BIOS feature adjustments, custom operating systems, and more. If you have specific needs, feel free to contact lattepanda@outlook.com. The LattePanda team is dedicated to offering rapido and professional support to meet your customization needs.

RIGOROUS CERTIFICATIONS

LattePanda's single-board computer series has obtained numerous international certifications, including CE, FCC, KC and RoHS, ensuring device safety and reliability. These certifications not only increase the competitiveness of the products in the market, but also simplify the certification process of the entire system.

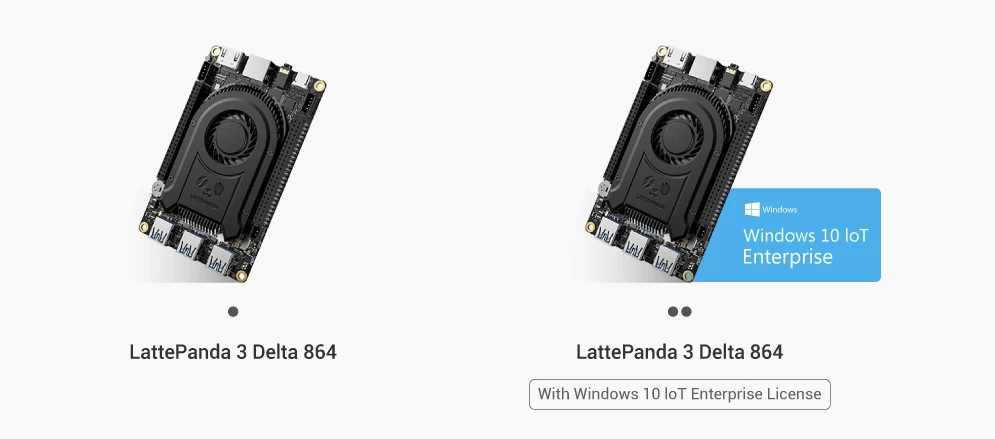

TWO MODELS.

The LattePanda 3 Delta is available in two models. This page presents the LattePanda 3 Delta x86 SBC without Win10 IoT Enterprise license.

Features

• Low-power, high-performance quad-core Intel N5105 mobile processor with TDP of 10W
• 8 GB RAM and 64 GB eMMC to ensure smooth multitasking and reliable application performance
• Ultra-fast connectivity: Wi-Fi 6 and 2.5 Gigabit Ethernet for streaming video or downloading large files quickly
• High-speed data transfer: 1 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, up to 20 times faster than USB 2.0
• Dual 4K HDR and triple video output, including HDMI, DisplayPort to USB-C and eDP for maximum flexibility
• Dual M.2 slot expansion: M.2 B key for 4G/5G module and SATA SSDs, M.2 M key for NVMe SSDs
• Full GPIO and integrated Arduino coprocessor ATmega32U4, compatible with more than 200 sensors and actuators
• Multiple operating system support: Windows (Windows 10 and Windows 11) and Linux (Ubuntu, etc.)
• Advanced BIOS functions: Auto power on, Watchdog Timer, serial port redirection, etc.

Applications

Package contains: 1 x LattePanda 3 Delta 864 - Pocket-sized Windows/Linux Single Board Computer (8GB RAM/64GB eMMC) - DFRobot

Specifically, the kit includes:

• 1 x LattePanda 3 Delta
• 1 x Active Cooling Fan (assembled)
• 1 x PD 45W power supply (with standard EU & US power cord)
• 2 x Dual-band antenna
• 1 x RTC Battery (assembled)
• 1 x User manual
