MilkPanda Mu - A Micro x86 Compute Module (N305 CPU, 16GB RAM, 64GB eMMC) - DFRobot

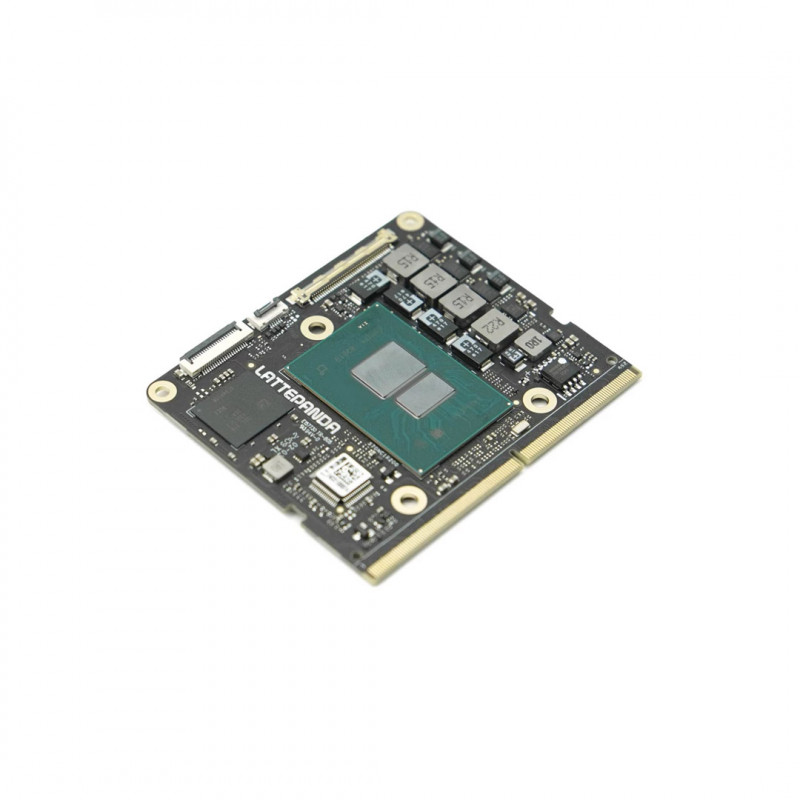

LattePanda Mu is a micro x86 computing module equipped with an Intel N305 octa-core processor, 16 GB of LPDDR5 memory and 64 GB of storage. LattePanda Mu offers a wide range of pins, including 3 HDMI/DisplayPort ports, 8 USB 2.0 ports, up to 4 USB 3.2 ports, and up to 9 PCIe 3.0 lines. These flexible ports and open-source carrier board files allow users to easily design custom carrier boards to meet specific needs.

Small but powerful

The LattePanda Mu x86 compute module features Intel N305 octa-core processor with up to 3.8 GHz turbo frequency, offering high performance and multitasking capabilities suitable for most applications. Thanks to the Intel N305 processor, the LattePanda Mu module achieves a multi-core score of 5249 and a single-core score of 1376 on Geekbench 6, outperforming Raspberry Pi 5, Intel Celeron N5105 and Atom x5-Z8350. CPU performance is double that of Raspberry Pi 5.

About the size of a card

Despite its small size of 69.6mmx60mm, the pocket-sized LattePanda Mu computer module can be integrated into devices with limited space, offering high computing performance without taking up too much space.

Flexibility in performance and energy

The processor's TDP can be adjusted from 9W to 35W, offering a fast development platform with essential interfaces for efficient design verification. The 9W setting allows efficient operation with minimal heat and quiet passive cooling, while the 35W setting provides high performance but requires active cooling.

Flexible expansion pins

The LattePanda Mu compute module offers a wide range of pins, including 3 HDMI/DisplayPort ports, 8 USB 2.0 ports, up to 4 USB 3.2 ports, 9 PCIe 3.0 lines, 2 SATA 3.0 ports, and 64 expandable GPIOs. This provides unparalleled flexibility and expansion possibilities, allowing you to create customized solutions according to your needs.

Carrier Cards - Expand Endless Possibilities

DFRobot offers a lite carrier board for the LattePanda Mu, providing a complete development platform with various interfaces for rapid design verification. In addition, a full evaluation carrier board is available, exposing all pins of the LattePanda Mu for in-depth hardware and software testing. Note: The PCIe slot of the carrier lite board is available only when using a 12V power supply.

Simpler and Easier Carrier Boards

LattePanda provides open-source carrier board files and libraries as reference material, allowing carrier board designs to be optimized to meet specific needs and significantly reducing development time.

Support for multiple operating systems

The LattePanda Mu x86 computer module supports multiple operating systems, including Windows 10, Windows 11, and Ubuntu, always ensuring the best solution for your needs.

Customized solutions

The LattePanda team offers customized services, including custom carrier boards, custom boot screens, BIOS functionality, operating systems, and more. For any specific needs, you can contact us at solution@lattepanda.com The LattePanda team is committed to providing professional and timely support to meet all your customization needs.

LattePanda Mu series selection guide

Features

• Processor: Intel® Core™ i3-N305 (up to 3.8 GHz, 8 cores, 8 threads)
• Memory: 16 GB LPDDR5 at 4800 MHz integrated with IBECC support
• Storage: 64 GB eMMC 5.1
• Configurable TDP: 9W ~ 35W
• Operating system support: Windows 10, Windows 11, Ubuntu
• Wide range of expansion pins, including: 3 HDMI/DisplayPort ports, 8 USB 2.0 ports, up to 4 USB 3.2 ports, 9 PCIe 3.0 lines, 2 SATA 3.0 ports, 64 expandable GPIO, etc.
• Open-source design files (KiCAD) of carrier boards

Applications

Package contains: 1 x LattePanda Mu - A Micro x86 Compute Module (N305 CPU, 16GB RAM, 64GB eMMC) - DFRobot

Specifically, the kit includes:

• 1 x LattePanda Mu Compute Module (N305 16GB)
• 1 x Product Manual
