Octopus Pro is a motherboard with adjustable voltage up to a maximum of 60 volts.
It uses the 32-bit ARM Cortex-M4 series STM32F446ZE chip with a frequency up to 168 MHz and a flash memory of 1 MB.
It supports up to 8 stepper driver , 5 V power for the stepper motor driver and 60 V motor input voltage help improve performance and reduce pulse loss.
Suitable for multi-extruder 3D printing and the use of several additional tools/modules.
The motherboard is compatible with Klipper, RepRap and Marlin and supports Raspberry Pi and Octoprint.
There are 2 variants of Octopus Pro:
Octopus Pro F446 (180 Mhz ARM-Cortex-M4 CPU and 512 KB flash memory)
Octopus Pro F429 (168 Mhz ARM-Cortex-M4 CPU and 1 MB flash memory)
Supports firmware update via DFU mode. In this case the firmware is sent to the board directly from the PC and does not require a bootloader, however this method is not recommended for inexperienced users. Details here:
https://github.com/bigtreetech/BIGTREETECH-OCTOPUS-V1.0/tree/master/Firmware

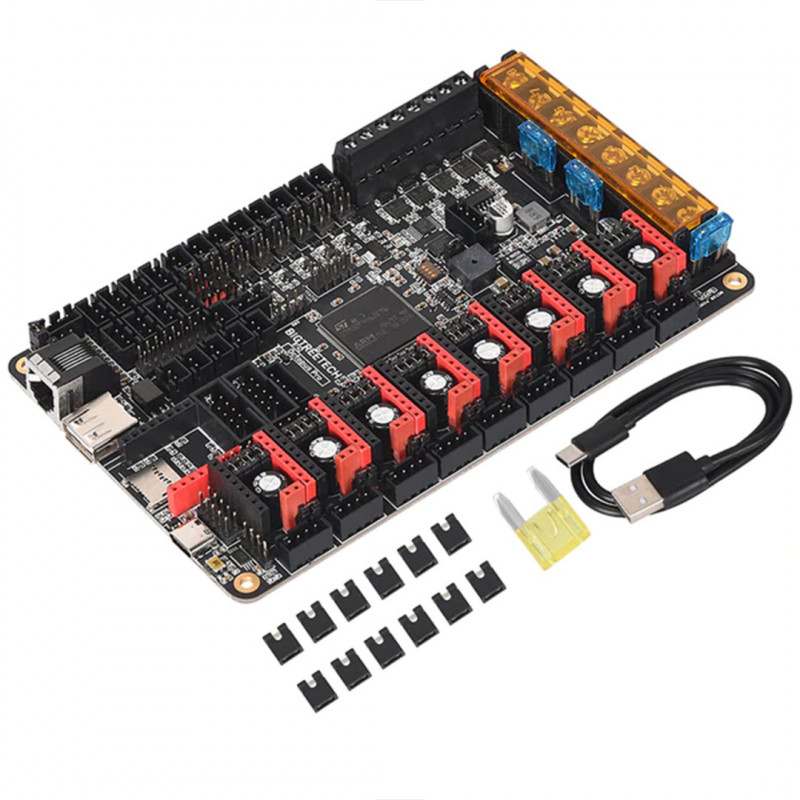

Package contains: 1 x BIGTREETECH Octopus Pro V1.0(F446)
Interfaces driver stepper compatible: SPI, UART, STEP / DIR
169 Mhz or 180 Mhz ARM-Cortex-M4 CPUs
NTC100K Onboard MAX31865 Chip
Max. 60 volts adjustable
Compatible Screens:
LCD displays (LCD12864, LCD2004 etc.).
TFT touchscreen
Fan connections:
6 controllable PWM fans
2 regular fans
3 adjustable fan voltages (5V, 12V and 24V)
Other interfaces:
8 connectors for driver stepper
Raspberry PI interface
CAN BUS, SPI and I2C for extensions
USB-C
dual Z-axis
4 heating cartridge connections
RGB LEDS
WiFi interface for ESP8266-based modules
BL-Touch and other automatic leveling upgrades.
More specifications inside the image gallery. For more information please contact us.
The item you receive may differ in some features from the one pictured, depending on the production batch. Despite this, the functionality is maintained.
