S42C v1.0 BIGTREETECH - Board Driver with OLED Display Control cards 19570006 Bigtreetech

Add to Compare

Product Sheet

Please login to Download PDF

Add to Project

Info! You can also add a product to your project that is not available for purchase.

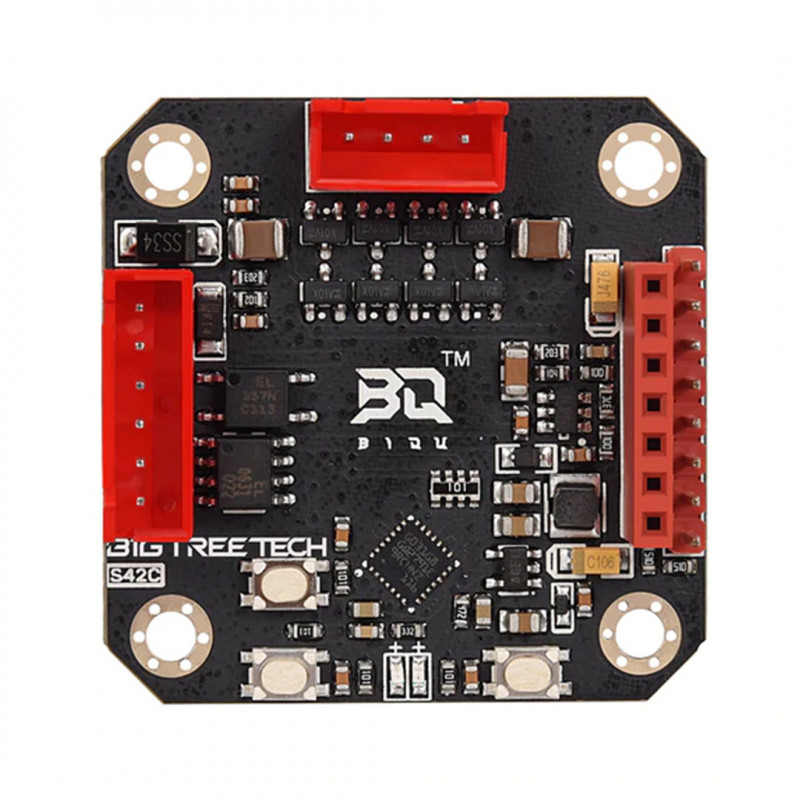

S42C v1.0 BIGTREETECH - Board Driver with OLED Display

Name: S42C v1.0 BIGTREETECH - Board Driver with OLED Display
Brand: Bigtreetech
SKU: 19570006
Price: 34.92 EUR
Availability: PreOrder

Reference: 19570006

€34.92

VAT included Shipping excluded

Pre-order Now

Delivery times indicated in stock details

Product Details
Brand Bigtreetech
Reference 19570006
-- Stocks: Immediate Availability *

*Regular shipments throughout the country
Description
BIGTREETECH S42C v1.0 is a closed-loop driver board for motor control stepper with OLED display.
For use with 3D printers.
The main control is STM32G031G8U6 and the encoder is TLE5012B. Thanks to the driver double H-bridges, the S42C board supports Step and UART mode.
The driver board improves motor performance, processing speed and printing accuracy. The main control chip can detect pulse loss caused by long jobs and compensate for it so that the printer can operate normally.

Why choose a BTT S42C v1.0 card?
- The S42C board is sold as a complete set, no soldering is required: it is a plug and play board.
- There is no pulse loss at high printing speeds
- Generates little heat when in operation and features high efficiency
- Easy to install and wire
- Motor operation is more stable
- 0.96-inch OLED screen, parameters can be changed
- Low noise and low vibration
- Parameter setting can be saved for later loading
- Supports direct control in UART mode
Package contains: 1 x BIGTREETECH S42C v1.0 + 1 x OLED display
Read more
What are the main parameters of BIGTREETECH S42C v1.0?
- Subdivision units: 1, 2, 4, 8, 16, 32, 64, 128, 256
- Maximum current: 1650 mA (12V)
- No-load current: 620 mA (12V)
- Step, rising edge Dir 40 ns
- Encoder resolution: 14 bits
- H-bridge output frequency: 22.8 khz
- Maximum speed: 2000 rpm
- Main control chip: STM32G031G8U6, Crotex-M0+, main frequency 64 MHz
More specifications inside the image gallery. For more information please contact us.
The item you receive may differ in some features from the one pictured, depending on the production batch. Despite this, the functionality is maintained.
