BMG Reverse Integrated Drive Gear Assembly R.I.D.G.A - Bondtech Accessories - BondTech 19050352 Bondtech

Add to Compare

Product Sheet

Please login to Download PDF

Add to Project

Info! You can also add a product to your project that is not available for purchase.

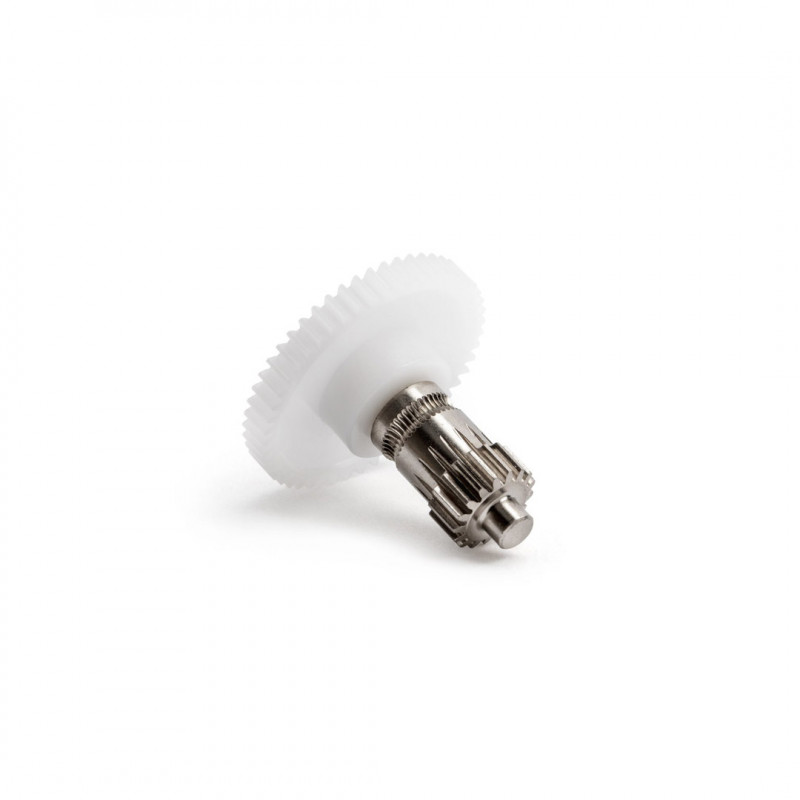

BMG Reverse Integrated Drive Gear Assembly R.I.D.G.A - Bondtech

Reference: 19050352

€20.24

VAT included Shipping excluded

Pre-order Now

Delivery times indicated in stock details

Product Details
Brand Bondtech
Reference 19050352
-- Stocks: Immediate Availability *

*Regular shipments throughout the country

Specific References
EAN13
7350011414734
Description
This kit consists of the following replacement transmission parts:
- Main shaft
- Main gear
- Set screw
- Primary gear
The BMG Reverse integrated transmission gear was designed in collaboration with MirageC, the creator of HextrudORT, to solve the problem of oscillation of the main shaft assembly and the primary transmission gear held by a set screw.
As MirageC explains in his video, the eccentricity of the double main gear and the oscillation of the primary drive gear help explain the surface irregularity found in all 3D prints.

To minimize these (in)tolerances, the following improvements were made:
- Double main gears with tighter tolerances
- Press fit on the main shaft with a new method
- The main shaft and main gear are machined in a monolithic set of steel.
Note

CAUTION. The primary gear is reversed, so it is NOT compatible with the Bondtech BMG extruder.

4x8x3.0 mm ball bearings are recommended.

Compatible ONLY with new HextrudORT extruder.

Package contains: 1 x BMG Reverse Integrated Drive Gear Assembly - Bondtech
Read more
- Shaft length: 27 -0/+0.05mm
- Shaft length to support ball bearings: 3mm - 3mm
- From the center of the filament teeth to the end of the shaft: 14mm - 13mm
- Number of teeth of the transmission gear: 17
- Length of transmission gear teeth: 4mm
- Main shaft/transmission gear material: Hardened steel
- Material compatibility: Flexible / Rigid / Abrasive
- Number of main gear teeth: 50
- Length of main gear teeth: 3 mm
For technical specifications, please visit the product support page Bondtech: https://www.bondtech.se/customer-service/

For more information please contact us.

The item you receive may differ in some features from the one depicted in the photo, depending on the production batch. Despite this, functionality is maintained.
