Sanguinololu 1.3a Pcb Ftdi chip testato e presaldato - Stampante 3D - RepRap

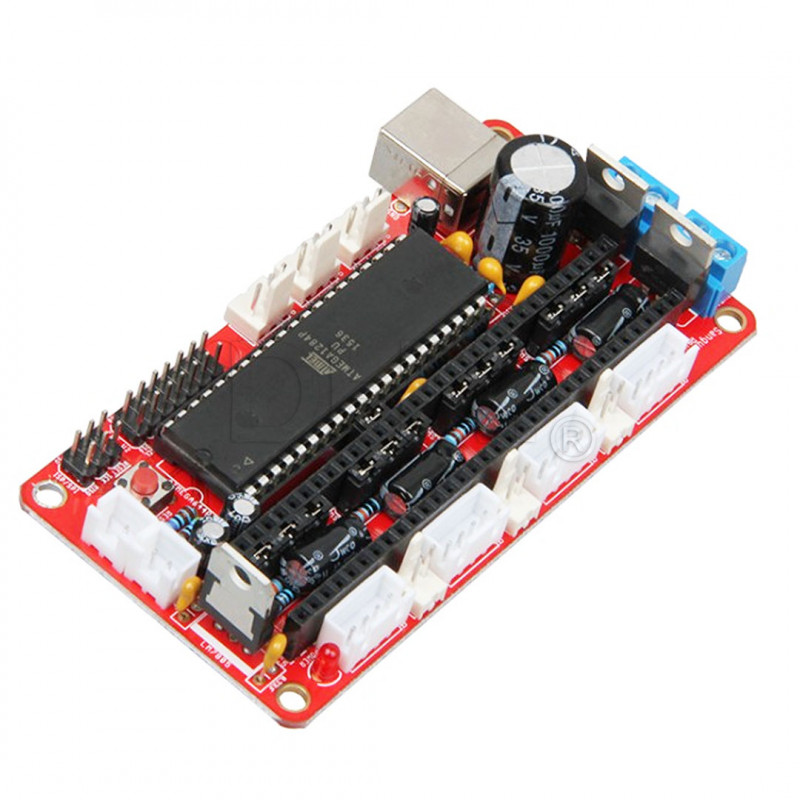

La confezione contiene: 1 x Scheda Sanguinololu 1.3a

Sanguinololu is a low-cost all-in-one electronics solution for Reprap and other CNC devices.
It is a complete electronics solution for driving your RepRap 3D printer, whatever the type - Prusa, MendelMax, Huxley, Mendel90, Rostock, etc. It features an onboard Sanguino clone using the ATmega644P though a ATmega644, ATmega1284 or ATmega1284P is easily dropped in. Its four axes are powered by Pololu pin compatible stepper drivers.
The board features a developer friendly expansion port supporting I2C, SPI, UART, as well as a few ADC pins. All 14 expansion pins can be used as GPIO as well. The board is designed to be flexible in the user's power source availability, allowing for an ATX power supply to power the board, or the user can choose to install the voltage regulator kit for use with any power supply 7V-30V.
These boards are version 1.3a, the latest version with support for the latest and most feature-rich firmware - Marlin. Marlin's extra features include the use of an LCD+card-reader+click-encoder combination for true stand-alone printing. The display+encoder combination also allows real-time alteration and saving of firmware settings - a significant advance in usability. To access these features with the Sanguinololu requires the ATmega 1284 chip because of the extra memory required.
