PROTO SHIELD REV3 (ONE SIZE) Shield 19140061 Arduino

Add to Compare

Product Sheet

Please login to Download PDF

Add to Project

Info! You can also add a product to your project that is not available for purchase.

PROTO SHIELD REV3 (ONE SIZE)

Name: PROTO SHIELD REV3 (ONE SIZE)
Brand: Arduino
SKU: 19140061
Price: 17.12 EUR
Availability: PreOrder

Reference: 19140061

€17.12

VAT included Shipping excluded

Pre-order Now

Delivery times indicated in stock details

Product Details
Brand Arduino
Reference 19140061
-- Stocks: Immediate Availability *

*Regular shipments throughout the country

Specific References
EAN13
813747020220
Description

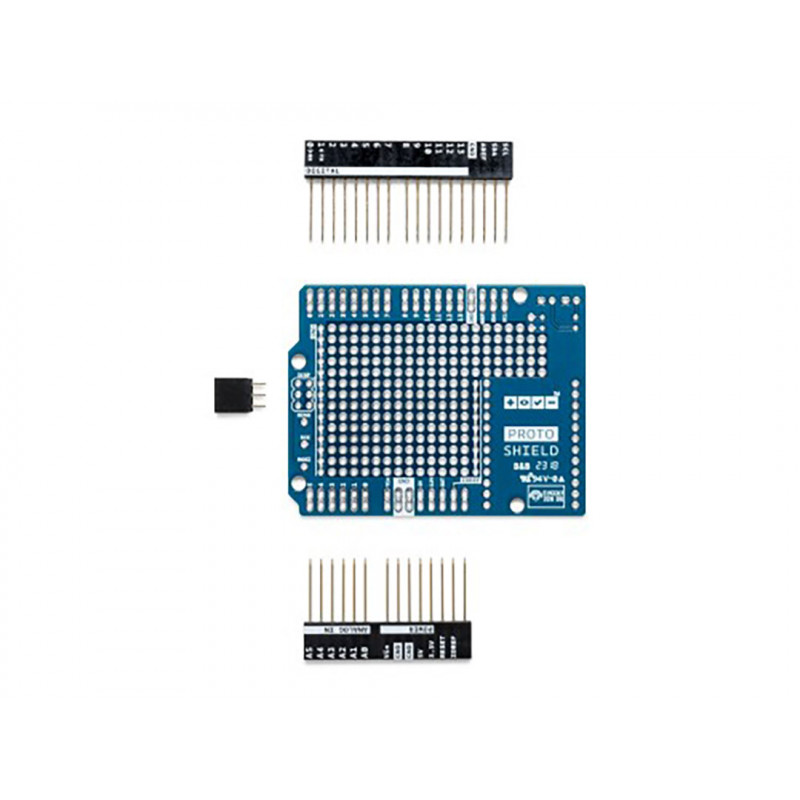

PROTO SHIELD REV3 (ONE SIZE) simplifies the design of custom circuits. You can easily solder TH or SMD ICs in the prototyping area to test them with your Arduino board. The SMD area is designed for up to 24-pin SOIC ICs, and the TH area contains plenty of room for the components you need around your project. You can even attach a mini breadboard (not included) to the proto area for solderless operation. The proto area also includes two power lines (IOREF and GND), two LED pads, and SPI signal breakout pads for boards with SPI only on the ICSP header as Zero.
Read more
The package contains: 1 x PROTO SHIELD REV3 (UNO SIZE)

TECH SPECS
1.0 Arduino Pinout
1 ICSP Connector footprint
2 LEDs and resistor footprint
IOREF and GND power lines
SPI signals pads
24 pin SMD footprint (50 mils pitch)

For technical specifications and installation examples, to share opinions and questions, also technical, you can consult the dedicated forum: https://forum.arduino.cc/index.php?board=34.0

The object that you will receive may differ for some features from the one represented in the picture, depending on the production batch. Despite this, the functionality is maintained.
