Horizon Sensor Automatic leveling 3D printers plane - Dyze Design

• Voltage: Min 3.3V, Typical 5V, Max 6V
• Current: Min 15mA, Typical 28mA, Max 35mA
• Logical output: 3.3V - 6V
• Analog output: 0V - 3V
• Sensing force: Typical 0.69N
• Operating temperature: 0°C - 40°C
• Mounting holes: M3

Output table:

Contact with detected bed:

• NO: Logical HIGH (Vin), Red LED OFF
• YES: Logic LOW (0V), Red LED ON

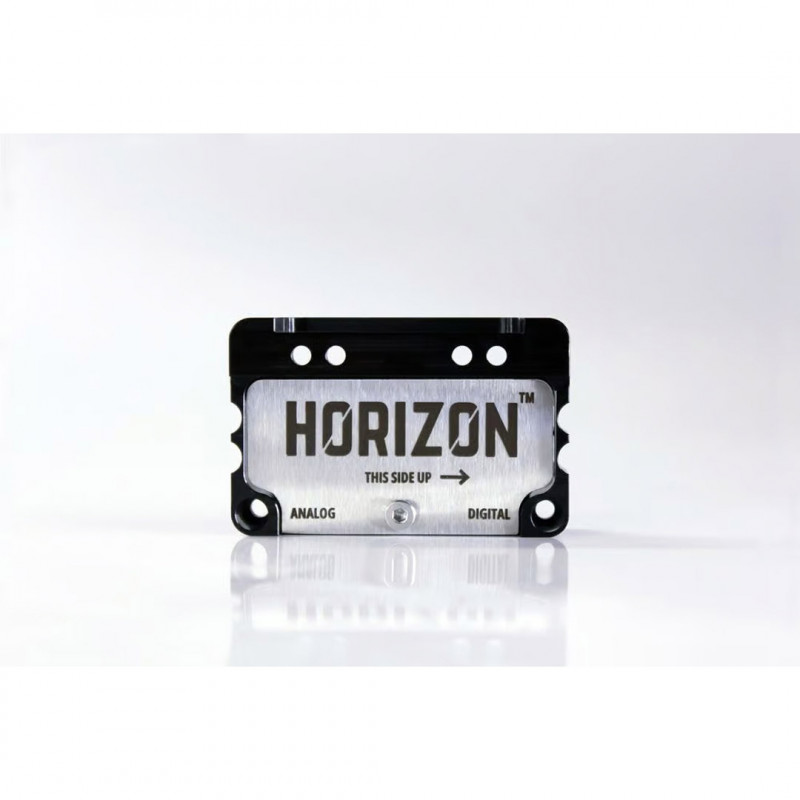

Labels and indicators:

• Straight Arrow: Indicates upward direction.
• "DIGITAL" label: Indicates the connector providing a digital signal (switch type).
• "ANALOG" label: Indicates the connector that provides an analog signal (real-time reading of the vertical force applied on the nozzle).
• LED: Indicates power supply and contact with the bed. Red LED lights up in case of bed contact (see output table for more details).

For complete documentation and configuration guide, see https://docs.dyzedesign.com/horizon.html

For more information contact us.

The item you receive may differ in some features from the one pictured, depending on the production batch. Despite this, functionality is maintained.
