IR INFRARED SENSOR TE174 MODULE arduino Arduino modules 08020244 DHM

Add to Compare

Product Sheet

Please login to Download PDF

Add to Project

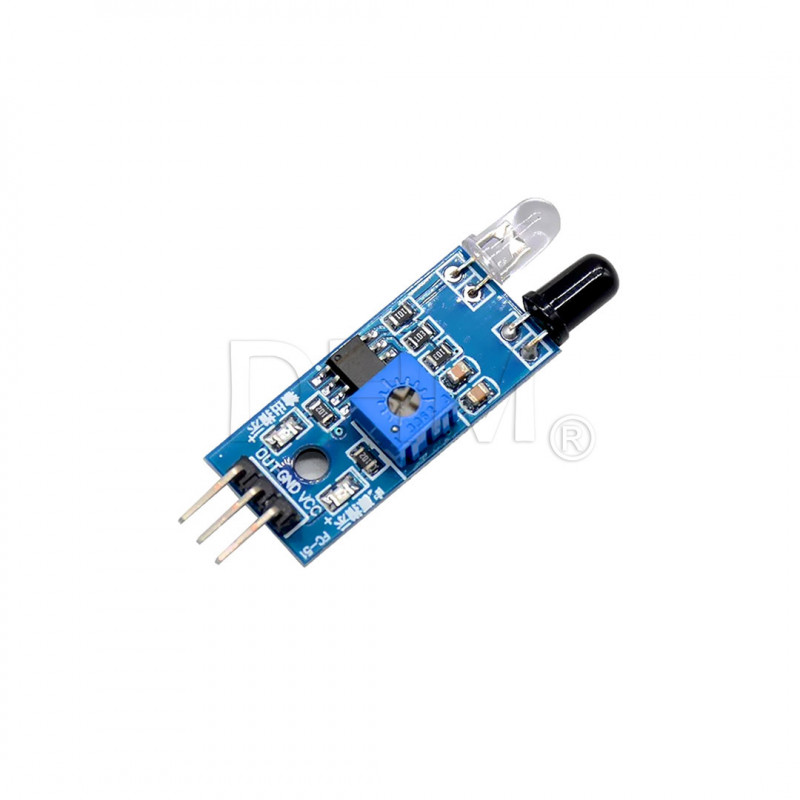

IR INFRARED SENSOR TE174 MODULE arduino

Name: IR INFRARED SENSOR TE174 MODULE arduino
Brand: DHM
SKU: 08020244
Price: 2.7 EUR
Availability: InStock

Reference: 08020244

€2.70

VAT included Shipping excluded

Immediate Availability

Dispatch in 24/48H

Product Details
Brand DHM
Reference 08020244
-- Stocks: Immediate Availability *

*Regular shipments throughout the country
Description
Package contains: 1 x IR Sensor TE174
The module detects an object at a distance between 2 and 30 cm, with a detection angle of 35 °, the distance can be adjusted using the trimmer, turning clockwise the distance increases; turning counterclockwise the detection distance decreases. The module uses a pair of infrared diodes (one emitting and one receiving) that work by reflection, so the shape and reflectivity of the target are important.Also the color affects the operation, the detection distance will be minimum in case the object is black, and maximum in case it is white. The output connector of the sensor module has the port named OUT that can be connected directly to the I/O port of a microcontroller, The output is able to directly drive a 5 V relay; Connection: VCC-VCC; GND-GND; OUT-IO. Signal stability is ensured using an LM393 comparator. The sensor module can be powered with a voltage between 3-5 V DC, the presence of voltage is indicated by its red LED. For fixing there is a hole for easy fixed installation, maximum screw diameter is 3 mm.
Read more
Power supply: 3.0 V - 6.0 V Operating current: at 3.3 V: ~ 23 mA at 5.0 V: ~ 43 mA Output voltage: 0-2.3 V [2.3V is fully immersed in water] Sensor type: digital output Detection angle: 35 ° Active output level: output Low logic level when obstacle is detected High logic level when no obstacle is detected. Sensing range: 2 cm - 30 cm (adjustable by trimmer).
