Current sensor 30A - ACS712 ammeter - Arduino - AC or DC current sensing Arduino modules 08020202 DHM

Add to Compare

Product Sheet

Please login to Download PDF

Add to Project

Current sensor 30A - ACS712 ammeter - Arduino - AC or DC current sensing

Name: Current sensor 30A - ACS712 ammeter - Arduino - AC or DC current sensing
Brand: DHM
SKU: 08020202
Price: 6.2 EUR
Availability: InStock

Reference: 08020202

€6.20

VAT included Shipping excluded

Immediate Availability

Dispatch in 24/48H

Product Details
Brand DHM
Reference 08020202
-- Stocks: Immediate Availability *

*Regular shipments throughout the country
Description
Package contains: 1 x Current Sensor ACS712 30A

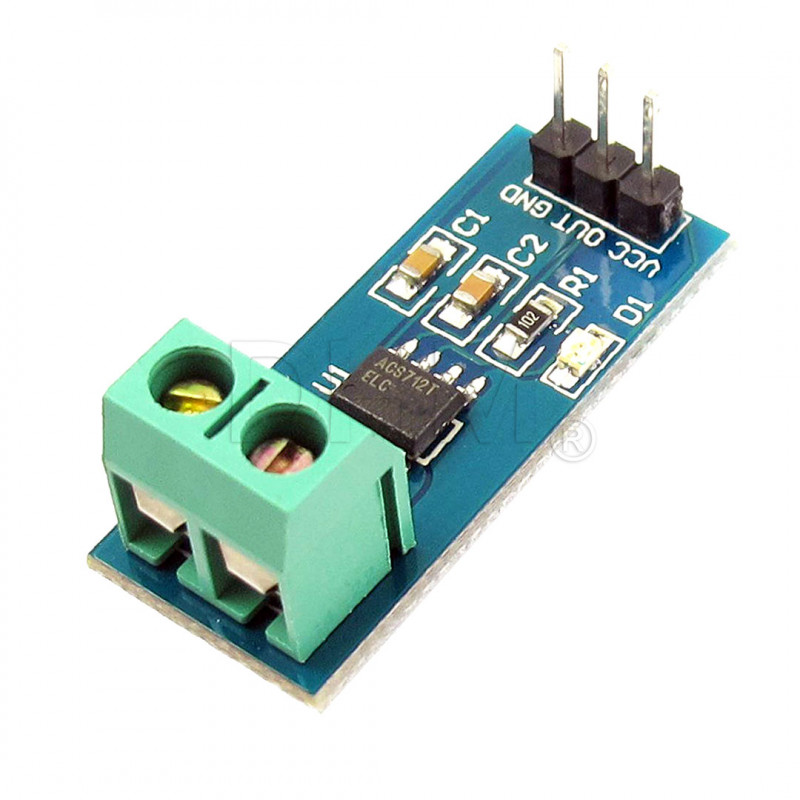

Current sensor up to 30A based on the Allegro ACS712 IC. The hall effect sensor is capable of making current readings up to values of about 30A, both positive and negative. The load to be measured is connected in series on the terminal block, as in a normal tester. The reading is returned as an analog signal proportional to the current. The sensor provides a 66mV output for each A read. The 3 pins on the opposite side of the terminal blocks are Vcc, GND and the OUT pin (analog signal).
Read more
Power supply (of module) : 5Vdc
Vout: 66mV/A
Measuring range: 0-30A
If the current read is "0" the output will return 2.5V.

Specifications in the data sheet inside the image gallery.
For more information please contact us.

The object that you will receive may differ in some features from that represented in the picture, depending on the production batch. Despite this, the functionality is maintained.
