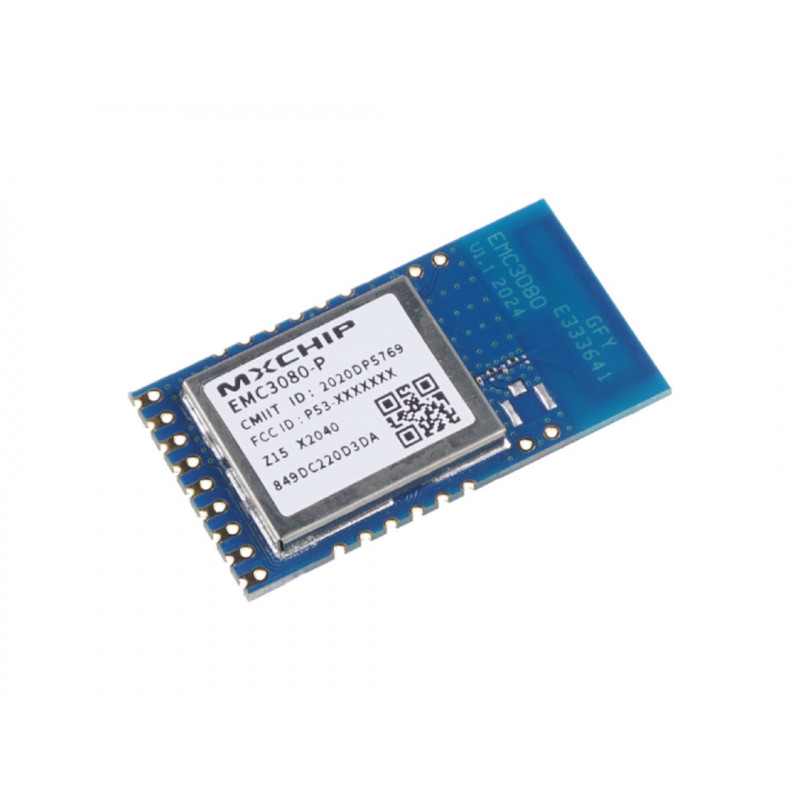

EMC3080 WI-FI&BLE Module - Support MXMESH

The EMC3080 modules are mainly used for IoT data communication. Data collection and control are realized through a rich peripheral interface, and data can be transmitted to the Internet of Things cloud service platform through a Wi-Fi network connection to realize the Internet of Everything. This series of modules is used in a wide range of IoT applications through a variety of different form factors, interface types, antenna interfaces and temperature range.
Features
Powerful CPU?Cortex-M33 Processor Core MX1300CF with 256K bytes SRAM
Advanced Bluetooth?Support Bluetooth 5.0 (BLE single mode). Support BLE Master/ Slave mode
Wide Working Voltage: DC 3.0-3.6V
Maximum transmission rate up to 72.2 Mbps with 20 MHz bandwidth.
High Quality Wi-Fi Features
More than 10 IO Peripherals such as SPI, I2C
Parameter
Operating Temperature?-40? to +105?
Operating Voltage: 2.7V?3.3V
Antenna: PCB antenna or IPEX connector (Optional)
Length*Width*Height: 2.400*2.600*0.300(cm)
Weight: 0.003kgs
Application Scenario
Intelligent Lighting
Health Care
Intelligent Household Appliances
Intelligent Electricians
Portable Devices
Hardware Architecture
