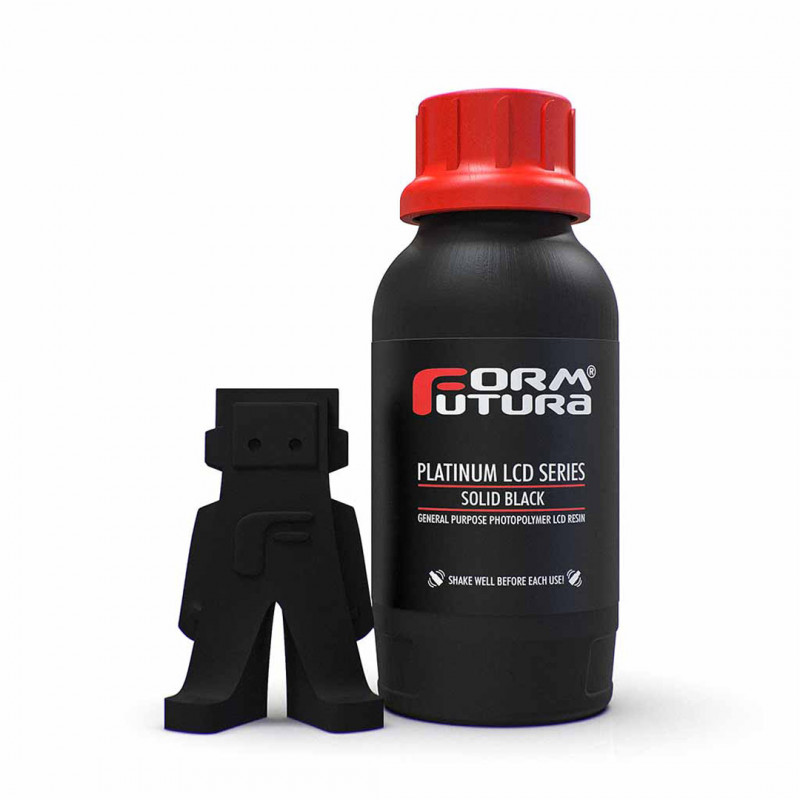

Platinum LCD Resin - General Purpose - Solid Black - Formfutura Standard LCD Series 19160683 Formfutura

Add to Compare

Product Sheet

Please login to Download PDF

Add to Project

Platinum LCD Resin - General Purpose - Solid Black - Formfutura

Name: Platinum LCD Resin - General Purpose - Solid Black - Formfutura
Brand: Formfutura
SKU: 19160683
Price: 34.28 EUR
Availability: InStock

Reference: 19160683

€34.28

€42.85

Save 20%

VAT included Shipping excluded

Day

Hour

Min

Sec

Immediate Availability

Dispatch in 24/48H

Product Details
Brand Formfutura
Reference 19160683
-- Stocks: Immediate Availability *

*Regular shipments throughout the country

Specific References
EAN13
8719956551901

Description

Platinum LCD Series - General Purpose Resin is available in true-clear, translucent and opaque versions and allows for near-authentic 3D prints with very high precision and an extremely smooth surface.

Platinum LCD resin is almost odourless and enables 3D prints with high dimensional accuracy and an excellent surface finish. It is a multi-purpose LCD photopolymer resin specifically developed to work with all LCD and DLP 3D printers open source. It is designed for relatively short cure times.

Key features

Nearly odourless - compared to other resins on the market, Platinum LCD Resin is significantly less odorous
UV and weather resistant
Fast printing with reduced exposure time
High-resolution printing with fine detail
Vivid colours with a very high level of colour stability
Available in true opaque and translucent colours
No discolouration or yellowing
Excellent dimensional accuracy and low shrinkage
Low water absorption
Compatible with all LCD and DLP printers open source with wavelengths 385-420 nm

Applications

Modelling and miniatures
Functional prototyping
End-use parts

Resin properties (liquid, uncured)

Viscosity: 500 cps at 25°C
Density: 1.18 g/cm³

Mechanical properties

Tested on post-cured objects for 10 minutes in a high-power mercury curing chamber.

Properties	Typical value	Test method
Glass transition temperature (Tg)	51°C	ASTM D7028
Water absorption	0,4%	ASTM D570-98
Impact resistance (notched IZOD)	18 J/m	ASTM D256A
Tensile strength	45 MPa	ASTM D638M
Tensile modulus	1000 MPa	ASTM D638M
Elongation at break	8%	ASTM D638M
Flexural strength	66 MPa	ASTM D790M
Flexural modulus	1800 MPa	ASTM D2240
Shore hardness D	82	ASTM D2240

Note: The values indicated may vary depending on the machine used, printing parameters, post-curing, geometry, printing orientation and temperature.

Print settings - Elegoo Saturn 4K (Solid white resin)

50 µm resolution

Initial layers / Burn-in: 3-4 layers × 20-30 s
Normal layers: 2.3-2.8 s
Lift-off distance: 9 mm
Light-off delay: 1
Bottom light-off delay: 3

Resolution 100 µm

Initial layers / Burn-in: 3-4 layers × 20-30 s
Normal layers: 4-5 s
Lift-off distance: 9 mm
Light-off delay: 1
Bottom light-off delay: 3

Preparation before printing

Shake the bottle for at least 2 minutes before each use
After shaking, allow the resin to stand for 10 minutes to allow air bubbles to escape
Resin can be filtered and poured back into the bottle after printing
Always use protective goggles and nitrile gloves when handling

Post-processing

For best mechanical properties, we recommend post-processing:
Wash the moulded object in IPA or (bio)ethanol for about 5 minutes
The use of an ultrasonic cleaner is preferable
Ensure that the parts are completely dry before post-curing
Allow to dry in a well-ventilated area for at least 30 minutes or use compressed air for 2 minutes
Polymerise in a high-power chamber for 20-30 minutes at 65 °C
Recommended wavelength for polymerisation: 300-410 nm

Safety

3D printing with resins involves the use of chemicals: always use the PPE indicated in the safety data sheets.
Wear respiratory protection when cutting or sanding
Always use nitrile gloves when handling uncured resins or objects

Package contains: 1 x Platinum LCD Resin - General Purpose - Solid Black - Formfutura

Read more
For further information please contact us.

The item you receive may differ in some features from the one shown in the photo, depending on the production batch. Despite this, functionality is maintained.
Attachments

Formfutura-sds-Platinum LCD
Download (258.08k)
