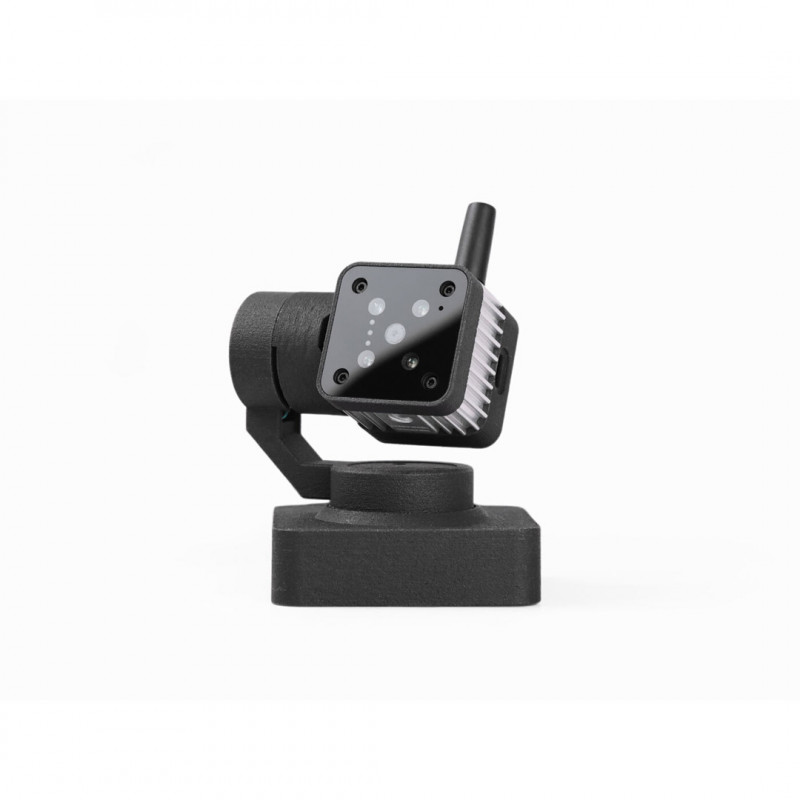

reCamera AI Camera with Gimbal - Seeed Studio

The reCamera Gimbal 2002 Series is the first open-source camera control system featuring a 1 TOPS AI camera (reCamera) and 2-axis gimbal. Dual brushless motors enable 360° rotation in the horizontal axis (yaw) and 180° rotation in the vertical axis (pitch), providing full coverage.

Fully Ecosystem open source

Fully hardware and software platform open source, for maximum development freedom.

Fast installation and precision movement

Modular Lego-style assembly, 360° (yaw) and 180° (pitch) rotation with 0.01° pitch accuracy.

AI-enhanced motion control

Integrated commercially licensed YOLOv11: artificial intelligence automatically adjusts gimbal movements.

Intelligent tracking

Support for Roboflow and SenseCraft AI for automatic and intelligent target tracking.

Flexible development

Node-RED for low-code customizations and C++ SDK for advanced development.

Precision Motors.

Dual brushless motors with 15-bit magnetic encoder for smooth and precise operation.

Fully open source ecosystem on hardware and software

Quick installation and precision movements

Lego-style modular assembly.
360° yaw rotation for full coverage and 180° pitch movement from floor to ceiling.
High-precision brushless motors with 0.01° pitch accuracy for smooth and stable target tracking.

AI-enhanced motion control

Ready-to-use custom AI models: integrated commercially licensed YOLOv11, compatible with Roboflow and SenseCraft AI.
Intelligent tracking: artificial intelligence automatically adjusts gimbal movements.

Flexible development for every skill level

Built-in Node-RED for low-code customization of gimbal motion streams.
C++ SDK support for more in-depth and professional development.

Applications

People detection and counting

Tracking of targets or objects

Control via gestures

Model customization with low-code approach - learn AI while having fun!

Open API, connect anywhere

Home Assistant

Package contains: 1 x reCamera AI Camera with Gimbal - Seeed Studio

Specifically, the kit includes:

• 1 x reCamera 2002w
• 1 x reCamera Gimbal Head
• 1 x reCamera Gimbal Arm
• 1 x reCamera Gimbal Base Cover
• 1 x reCamera Gimbal Base
• 1 x Power Supply Board
• 1 x Antenna
• 1 x MS3506 Motor
• 1 x Motor MS3008
• 5 x Screw A (KAB 3.0 × 10.0 mm)
• 7 x Screw B (KM 2.0 × 6.0 mm)
• 5 x Screw C (M 2.0 × 10.0 mm)
• 9 x Screw D (KM 2.5 × 4.0 mm)
• 5 x Screw E (KA 2.0 × 6.0 mm)
• 1 x DC female jack (5521) → XT30 connector
• 1 x XT30 (2+2)-F connector with cable
• 1 x Micro JST PH 2.0 6-pin female-to-female cable
• 1 x Screwdriver (M2.5 × L55 mm)
• 1 x Hexagonal wrench
• 1 x Motor adapter board
• 1 x User Manual
