ApolloX Kevlar is a 3D printing filament that combines all the advantages of ApolloX, such as high precision and low warping, and is reinforced with 10% aramid fibres (Kevlar).
Compatible with high-speed printing up to 600 mm/s
With high-speed 3D printing becoming increasingly popular thanks to the introduction of new high-performance printers, FormFutura is excited to present a range of new and upgraded existing materials in its assortment.
These materials, while remaining perfectly compatible with traditional printers, have been fully optimised for the new high-speed 3D printing technology.
ApolloX Kevlar is a high-performance ASA filament reinforced with aramid fibres (Kevlar). Kevlar reinforcement makes this material shatterproof.
Kevlar does not break easily and significantly improves impact and damage resistance. ApolloX Kevlar is also very easy to print on open-frame desktop printers. There is no need for an enclosure or heated chamber.
The low material shrinkage and excellent adhesion between layer make ApolloX Kevlar extremely easy to print.
Key features
- UV and weather resistant
- Reinforced with 10% Kevlar
- Heat resistance up to 94°C
- High resistance to damage, impact and fatigue
- Easy to print on open-frame desktop 3D printers
Recommended applications
- Automotive components
- Robotics and drones
- Fasteners, tools, holders and soft jaws
- Protective devices
- Production of functional end products
- Explanation of Aramid Fibre Reinforcement (Kevlar)
Filament reinforcement with aramid fibres (Kevlar) offers numerous advantages by combining the unique properties of both materials.
The properties of the thermoplastic are improved by the characteristics of Kevlar, which offers benefits such as:
- Very high strength-to-weight ratio
- Increased impact resistance
- Weight reduction
- Increased tensile strength
- Increased dimensional stability
- Reduced shrinkage and warping
- Improved chemical resistance
- Increased heat resistance
- Matt surface finish that reduces the visibility of lines of layer
This makes Kevlar-reinforced filaments perfect for 3D printing durable and hard-to-break components.
General printing guidelines*
| Nozzle diameter: ≥ 0.1 mm |
Height layer: ≥ 0.05 mm |
Enclosure required: No |
| Print temperature: approx. 255 - 265°C |
Fan: 0% |
Heated plate: approx. 85 - 95°C |
*The settings indicated are guidelines for finding optimal printing parameters. They may work for most printers, but you may experiment with different settings depending on the type of printer, hotend and calibration.
*During high-speed printing, the indicated parameters may require further adjustment.
Abrasiveness
Kevlar-reinforced filaments contain a significant amount of hard fibres with an abrasive nature.
These fibres accelerate the wear of brass nozzles much faster than unreinforced filaments.
We therefore recommend the use of hardened steel nozzles or ruby-tipped nozzles.
Storage and handling
The filament should be stored at room temperature, in a dry, dark place, with a humidity of less than 15%.
Recommended storage temperature: approx. 18-25 °C
Protect from moisture, sunlight and direct heat sources
If stored correctly, the product has a shelf life of approximately 24 months.
For best printing performance, we recommend drying the material before use and printing directly from a dry box.

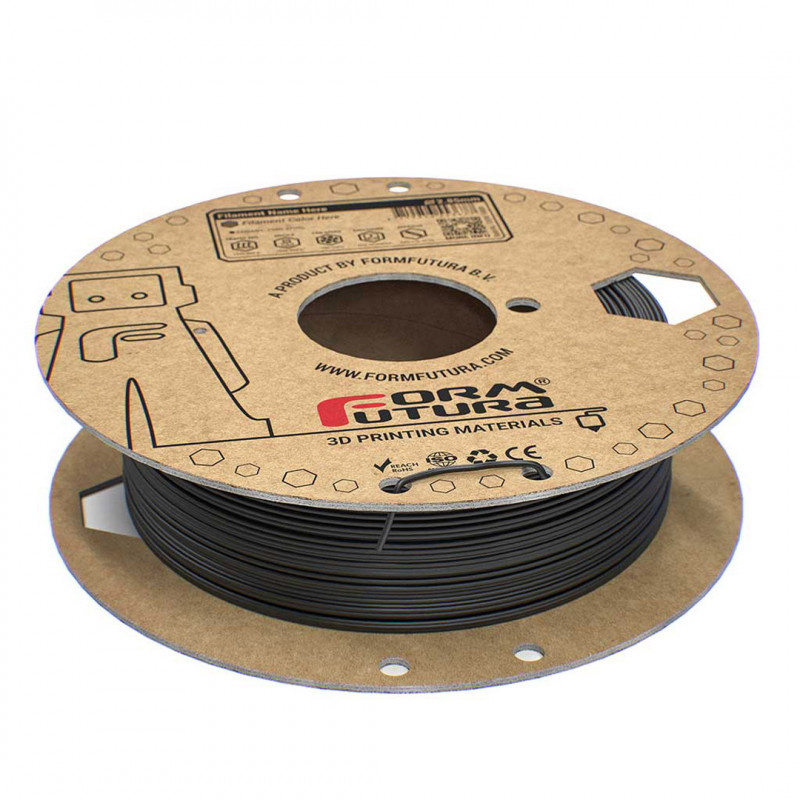

Package contains: 1 x ApolloX Kevlar Black 500g 1.75mm - Formfutura
