DDX Integrated Drive Gear Assembly - Bondtech Accessories - BondTech 19050354 Bondtech

Add to Compare

Product Sheet

Please login to Download PDF

Add to Project

Info! You can also add a product to your project that is not available for purchase.

DDX Integrated Drive Gear Assembly - Bondtech

Reference: 19050354

€20.24

VAT included Shipping excluded

Pre-order Now

Delivery times indicated in stock details

Product Details
Brand Bondtech
Reference 19050354
-- Stocks: Immediate Availability *

*Regular shipments throughout the country

Specific References
EAN13
7350011414048
Description

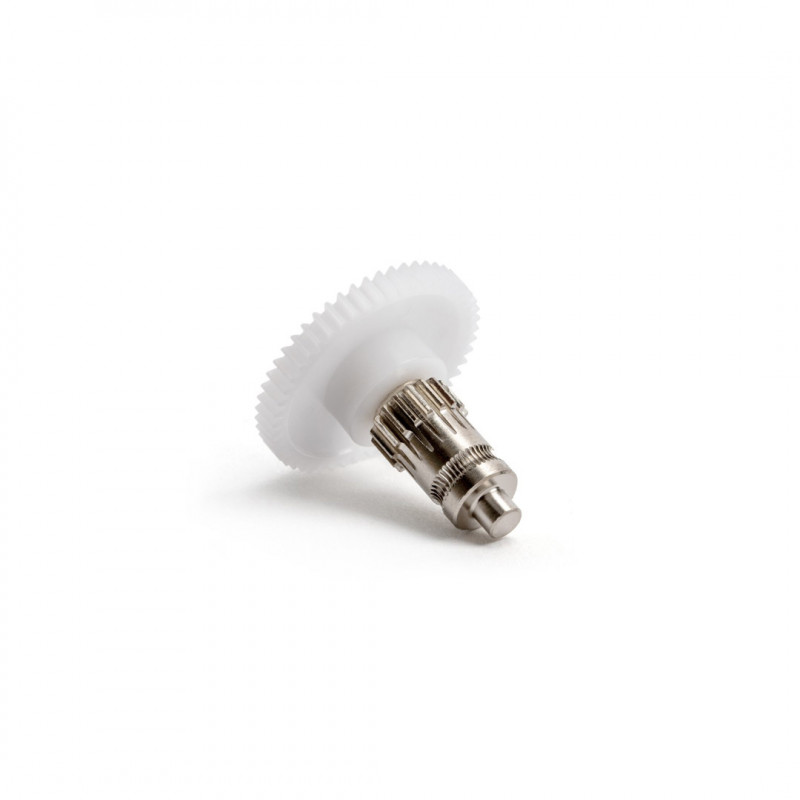

The DDX Integrated Drive Gear Assembly is an integrated transmission gear assembly compatible with:
- Bondtech DDX for extruder Creality
- Bondtech BMG-HT for FunMat HT
Please note: the shaft is 28.1 mm long. It is NOT compatible with the Bondtech BMG extruder.

We recommend using 4x8x3.0 mm ball bearings (NOW INCLUDED).

This kit consists of the following replacement transmission parts:
- Main shaft
- Main gear
- Set screw
- Primary gear
Package contains: 1 x BMG Integrated Drive Gear Assembly - Bondtech
Read more
- Shaft length: 28.1 -0/+0.08mm
- Shaft length to support ball bearings: 3.3mm - 3.3mm
- From the center of the filament teeth to the end of the shaft: 21.84mm - 6.30mm
- Number of teeth of the transmission gear: 17
- Length of the teeth of the transmission gear: 4mm
- Main shaft/transmission gear material: Hardened steel
- Material compatibility: Flexible / Rigid / Abrasive
- Number of main gear teeth: 50
- Length of main gear teeth: 3 mm
For technical specifications, please visit the product support page Bondtech: https://www.bondtech.se/customer-service/

For more information please contact us.

The item you receive may differ in some features from the one depicted in the photo, depending on the production batch. Despite this, functionality is maintained.
