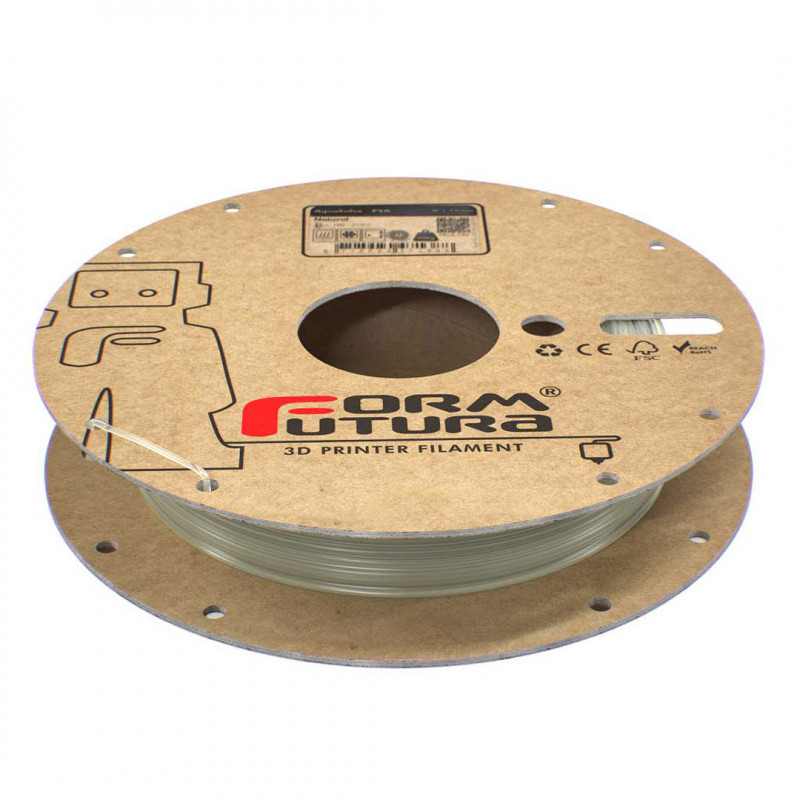

AquaSolve - PVA - Natural - Formfutura

General printing guidelines * Nozzle size: ? 0.15mm Layer height: ? 0.1mm Experience level: Expert Print temp: ± 190 - 210° C * Fan speed: 0 - 30% Heat bed: ± 0 - 60° C Enclosure needed: No *) Above displayed settings are meant as guidance to find your optimal print settings. These ranges in settings should work for most printers, but please do feel free to experiment outside these ranges if you think it is suitable for your printer. There are a lot of different type of printers, hot-ends, and printer offset that it is extremely difficult to give an overall one-size-fits-all setting. *) Do not exceed a printing temperature of 225?C, because AquaSolve PVA will then crystallize to quickly and it will no longer flow and/or dissolve in water. Printing with PVA materials does require a certain level of 3D printing expertise as PVA cannot stay too long in the hot secondary/support nozzle and needs to flow and by that needs expert tweaking to find the optimal ?waiting temperature? for the material not to deteriorate/crystalizing in the hot secondary/support nozzle when not being 3D printed. Filament length ?: 1.23 g/cc 50 gr coil 0.3 Kg spool Ø 1.75mm ± 16.9m ± 101m Ø 2.85mm ± 6.4m ± 38m General guidance for printing with PVA support materials Printing with PVA, in general, isn?t plug and play and does require a fair amount of 3D printing expertise as there isn?t a generic one-size-fits-all setting for dual extrusion printing with PVA materials. The optimal PVA settings can even vary between the same models of 3D printers. One of the most common challenges are to establish a good bond between the PVA support material and the primary building material. Below parameters are of utmost importance to establish good adherence. Verify the extrusion distance between the printed object and the PVA support. The default setting in most slicer software is often set at a distance of 0.1mm or 0.2mm, which works well for break-away support, but not for PVA support. For PVA support materials the extrusion distance must be set to 0.0mm as both materials must really come into contact with each other. The printing (nozzle) temperature is extremely important and it is advised to measure the actual temperature of the nozzle and to compare this temperature with the temperature set in the print settings. If the actual temperature of the nozzle is for instance 10° C lower than the temperature in the print settings it might very well be that the layer of PVA support material is not flowing optimally into the layer of the primary building material. It is often seen that the actual nozzle temperature varies from the print temperature set in the slicing software. Verify if the nozzles of your printer are properly leveled and have exactly the same height so that there is no ?height difference? when layering the PVA support material on top of the primary building material. In order to verify this it is recommended to 3D print a 5cm x 1cm rod and to print every 1 to 2 layers with the left nozzle and the following 1 to 2 layers with the right nozzle and to repeat this process multiple times. If you notice a non-perfect layering then the nozzles aren?t properly leveled. This process can be done with PLA for instance. Product export information HS Code: 39169090 Description: Monofilament Country of origin: the Netherlands Compliance * This filament is compliant to below-listed directives and regulations. RoHS directive 2011/65/EC REACH directive 1907/2006/EC *) This declaration of conformity to directives and regulations is prepared according to our present standard of knowledge and may be amended if new cognitions are available and applies only for the above-described products.
