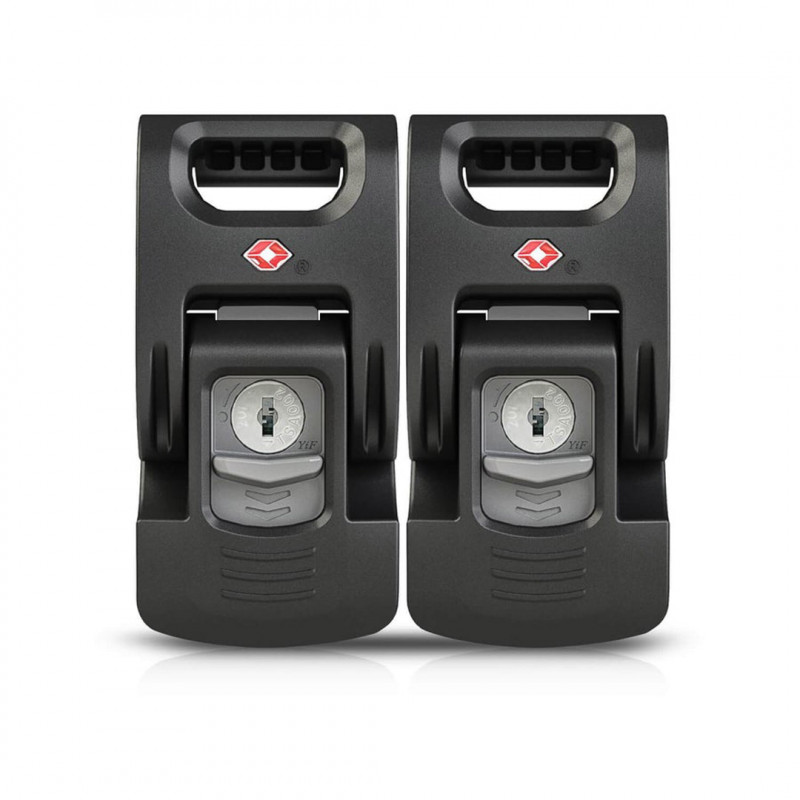

TSA Latches Retrofit Kit

Cases with short latch pin (Nanuk 908, 950, 960)
Step 1 - Remove Powerclaw latch
Open and secure latch in locked lower position.
Use hammer and awl to slide it outward from case.
Remove pin, use pliers if necessary. Remove latch.
Step 2 - Install TSA Powerclaw latch
Loosely install latch in locked lower position. ***Do not attach the top latch to the case before installing the pin.***
Insert the smooth end of the new pin into the case. Be careful to align the pin with the holes in the TSA latch
Push the pin in as far as possible by hand.
Use a hammer and punch to carefully install the pin with the surface of the case.
Step 3 - Check Latch Operation
Open and close the latch several times to ensure proper operation.
Use key to verify lock/unlock function.

Long latch pin cases (Nanuk 918, 920, 925, 933, 935, 940, 945)
Step 1 - Remove Powerclaw latch
Open and secure latch in lower lock position
Use wire cutter or pliers to remove pin by forcing outward
Remove pin, use pliers if necessary. Remove the latch.
Step 2 - Install TSA Powerclaw Latch
Loosely install latch in locked lower position. ***Do not attach the top latch to the case before installing the pin.***
Insert the smooth end of the new pin into the case. Be careful to align the pin with the holes in the TSA latch.
Push the pin in as far as possible by hand.
Use a hammer and punch to carefully install the pin with the surface of the case.
Step 3 - Verify Latch Operation
Open and close the latch several times to ensure proper operation.
Use the key to check the lock/unlock function.
