T5 pulley 22 Teeth Hole 15mm: robustness for metric pitch transmissions

T5 profile toothed pulleys are a classic and reliable solution for transmitting motion in contexts requiring superior mechanical strength. Thanks to their 5mm metric pitch, these pulleys are designed to interface with reinforced belts, guaranteeing constant traction and optimal torque management. With DHM, you have the security of selected components to offer stability and precision in your automation and applied mechanics projects.

What is the 22-Tooth T5 Pulley?

It is an aluminium transmission component with a trapezoidal tooth profile according to the T5 metric standard (5mm pitch). Unlike smaller profiles, the T5 system is designed for applications where the driving force is more important than pure micrometer resolution. The 22-tooth configuration allows for a small footprint while providing a firm grip on the belt, making it ideal for robust handling systems.

Why choose our T5 pulley?

Manufactured to meet high industry standards, this pulley is characterised by specific technical features:

• Standard Trapezoidal Profile: Ensures a secure mechanical coupling with polyurethane (PU) T5 belts with a steel or neoprene core.
• High Torsion Resistance: The quality aluminium structure allows it to withstand significant mechanical stresses without deforming the profile.
• Safe Guidance: The double side flange prevents axial slipping of the belt, ensuring that it remains in place even under load or during sudden acceleration.
• Precision Fastening: The 15 mm hole is calibrated for a precise fit on standard drive shafts, with locking dowels included for definitive fastening.

Note on manufacturing tolerances

We work to ensure the highest quality consistency, however, due to possible variations between production batches, actual measurements may differ from those given in the data sheet by ±2 mm (except for inner bore). If your project requires specific dimensions or precise millimetre tolerances, we recommend that you contact us prior to purchase for direct verification of stock measurements.

When to use the T5 22-Tooth Pulley?

The 5mm pitch and the robustness of the profile make it the ideal choice for:

• Industrial Automation: Conveying and positioning systems requiring synchronous and powerful motion transmission.
• CNC and Heavy Mechanics: Small pantographs or machine tools where a wider and stronger belt than the standard 2mm is required.
• Robotic Prototyping: For creating actuators and lifting systems that must handle moderate loads reliably.

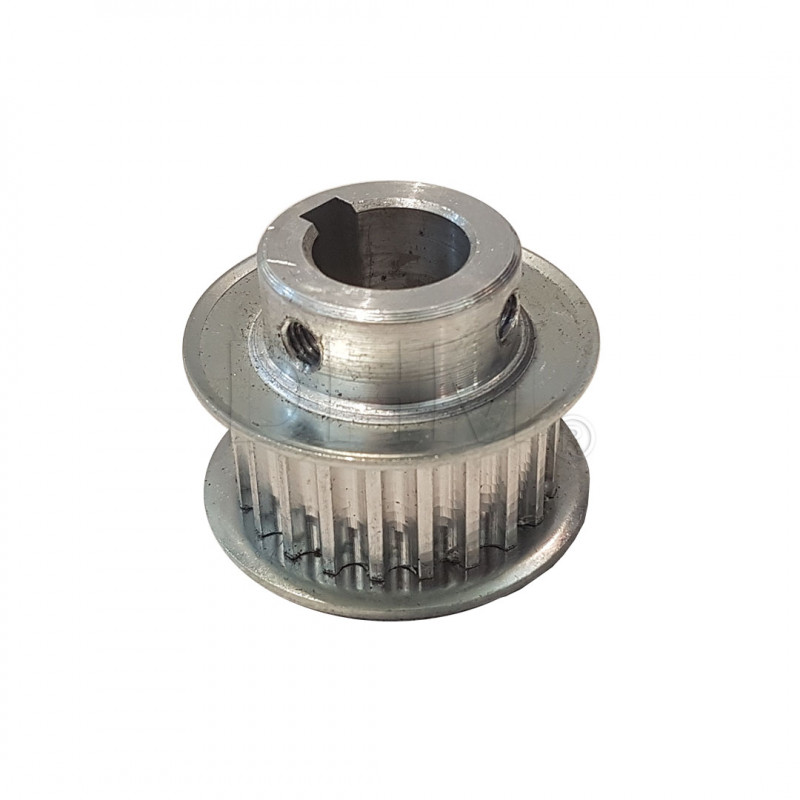

Package contains: 1 x Pulley HTD-5M Ø15 mm 22 teeth H16
