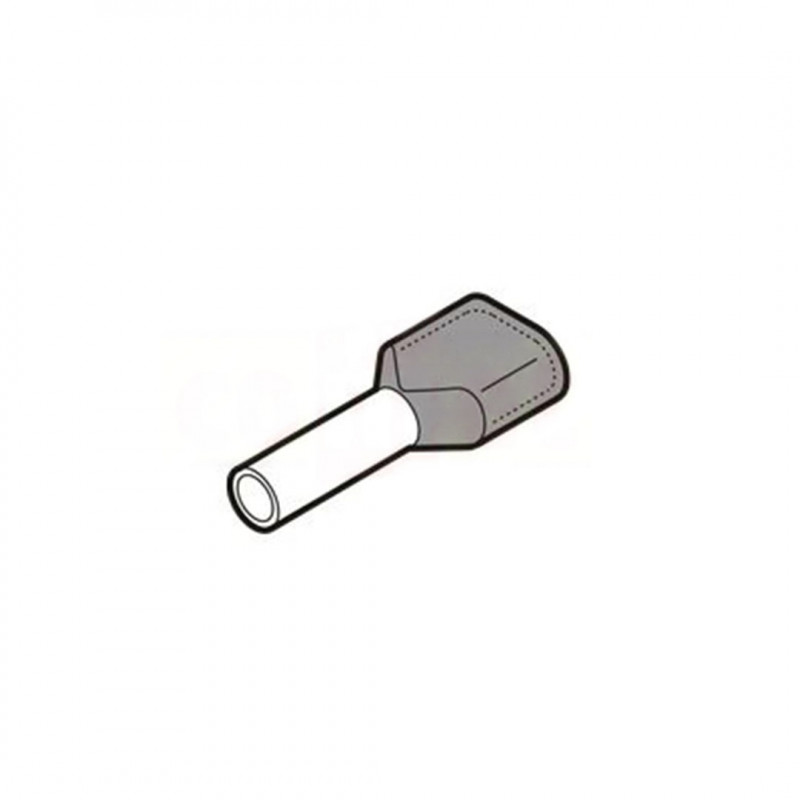

The package contains: 1 x PKT412 - DOUBLE PRE-INSULATED TERMINAL TUBE sez. 2x4mmq P 12mm GREY
PA6 ?TWIN? PRE-INSULATED TERMINAL TUBES for flexible copper cables
PKT series terminal tubes are made of electrolytic copper with purity higher than 99.9% and electrolytically tinned; specially designed for applications where 2 conductors need to be inserted in the same receptacle.
Technical data
The connectors are made of electrolytic copper Cu DHP UNI 5649/1988 (corresponding to: SF-Cu DIN 1787/1973 Cu/b1 NF A 51-050)
Electrolytically tinned, min. thickness 3?m
Main characteristics of Polyamide 6 (PA6) insulating sleeves:
RIGIDITY? DIELECTRIC (KV/mm) : >16.5
RESISTIVITY? VOLUME (? ? cm) : >1013
TEMP. MAXIMUM OPERATING TEMPERATURE (°C) : 115-130
FLAMMABILITY? (UL94) : V2
DENSITY? (g/cm3) : 1.14
ABSORPTION OF H2O (%) : 1.5
RESISTANCE TO BREAKAGE (N/mm2) : 77
The connectors can also be stored at a minimum temperature of not less than - 40°C.
