Luvocom 3F PEKK 50082 (PolyEtherKetoneKetone) is a high-performance polymer belonging to the PAEK (PolyArylEtherKetone) family. The filament can be processed at lower printing temperatures than PEEK-based filaments, while still offering a glass transition temperature (Tg) that is approximately 15°C higher.
The material is suitable for applications exposed to operating temperatures of up to 300°C for short periods and continuous temperatures of up to 255°C.
Luvocom 3F PEKK 50082 is designed to replace metal components and composite materials used in various industries. The filament is suitable for applications in fields ranging from aerospace, shipbuilding and automotive to medical, oil & gas and energy.
The material exhibits excellent adhesion between layers, ensuring exceptional dimensional accuracy and high strength in the Z-axis of moulded parts.
Key features
- Contains Lehvoss Luvocom 3F PEKK 50082 NT
- Suitable for continuous operating temperature applications up to 255°C
- Short-term operating temperature up to 300°C (max. 200 hours during service life)
- Warping very limited or absent
- Unique tribological properties
- Excellent mechanical properties
- Flame resistance to UL 94 V-0 standard
- Outstanding chemical resistance
Applications
- Components subjected to dynamic stress
- Highly chemically resistant parts
- Wear-resistant components
- Aerospace applications
- Automotive
The PAEK family
PolyArylEtherKetone (PAEK) is a family of high-performance semi-crystalline thermoplastics characterised by high mechanical strength and excellent resistance to temperature, chemicals and wear.
The most popular members of the PAEK thermoplastics family are:
- PolyEtherEtherKetone (PEEK)
- PolyEtherKetoneKetone (PEKK)
- PolyEtherKetone (PEK)
- PolyEtherEtherKetoneKetone (PEKEKK)
- PolyEtherEtherKetoneKetone (PEEKK)
General printing guidelines *
| Nozzle size: ≥ 0,4 mm |
Height layer: ≥ 0.10 mm |
Experience level: Expert |
| Print temperature: ± 320 - 360°C |
Fan speed: 0 - 25%. |
Drying: +4 hours at max. 110°C |
| Heated plate: ≥ 120°C |
Closed chamber: heated chamber at 90°C |
Adhesion to substrate: EasyFix No. VII |
* The above settings are guidelines for finding optimal print settings. These ranges should work with most printers, but you can experiment outside these values if you feel it is suitable for your printer. There are many different types of printers, hot-end and offset, so it is difficult to provide universal settings that apply to all.
Filament length
| ρ: 1.27 g/cc |
Coil 0.2 kg |
Coil 0.5 kg |
| Ø 1.75 mm |
± 65 m |
± 164 m |
| Ø 2.85 mm |
± 25 m |
± 62 m |

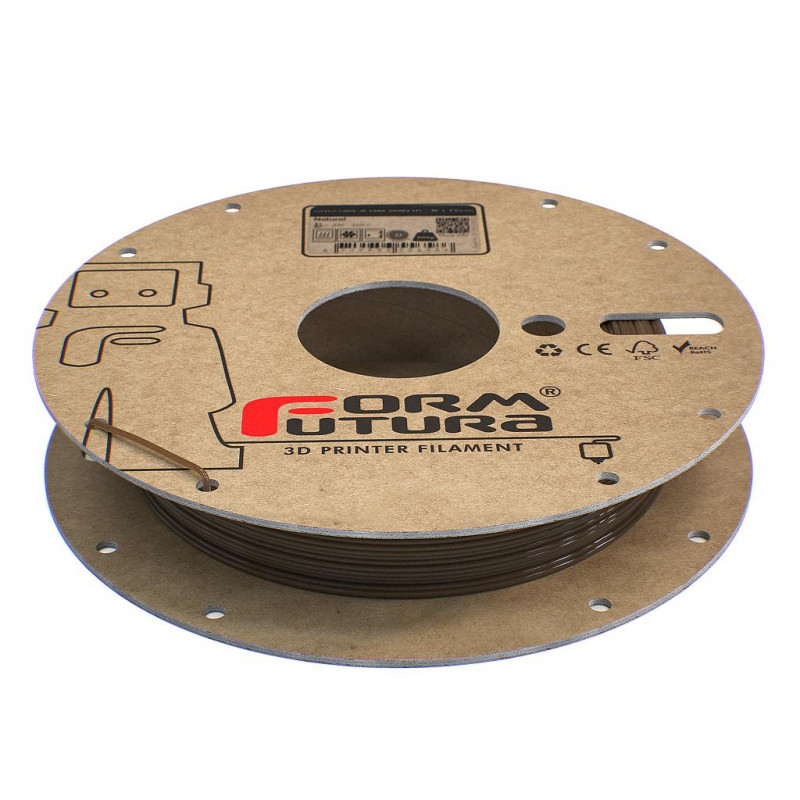

Package contains: 1 x LUVOCOM 3F PEKK 50082 - Formfutura
