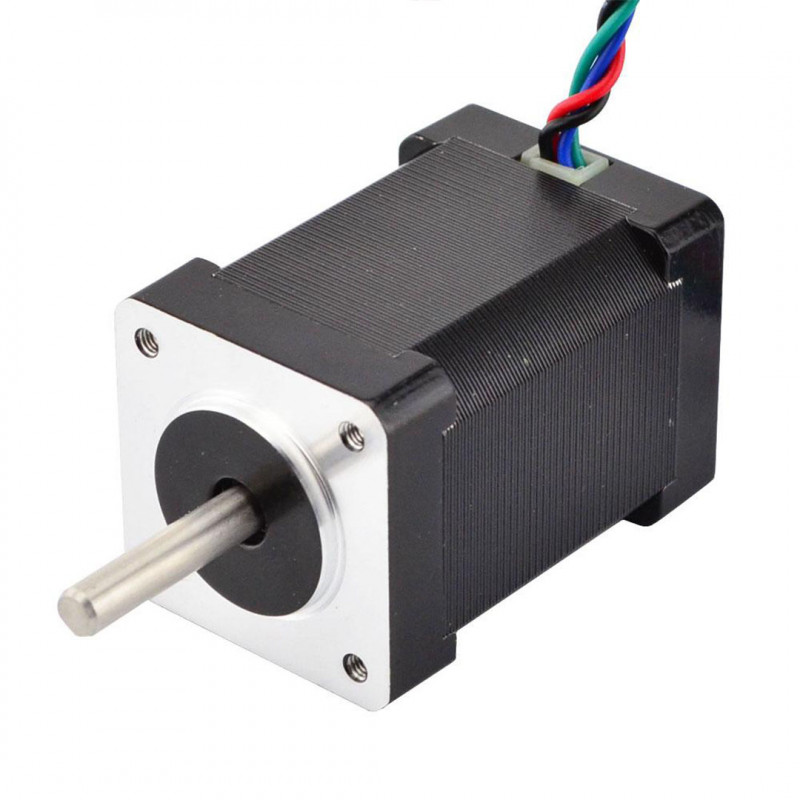

14HS20-1504S 1.5A 1.8° stepper motor STEPPERONLINE NEMA 14 CNC 3D print
Added to your Project
Removed from your Project
- Product Details19670000-- Stocks: Immediate Availability **Regular shipments throughout the country
Data sheet
- Suitable for the following 3D printers
- Voron 0.1
- DescriptionPackage contains: 1 x 14HS20-1504S 1.5A 1.8° stepper motor STEPPERONLINE NEMA 14 CNC 3D print
This Nema 14 stepper motor is the most powerful model in Nema 14 motors, with 1.8 degree Stepping Angle and size 35x35x52mm. It has 4 wires, each phase draws 1.5A at 4.2V, with Holding Torque 40Ncm (56.7oz.in). - Read moreElectrical Specification
Manufacturer's Item Code: 14HS20-1504S
Motor Type: Bipolar
Pitch Angle: 1.8 deg
Holding Torque: 40Ncm(56.7oz.in)
Current/Phase Rating: 1.5A
Phase Resistance: 2.8ohms
Inductance: 3.8mH ± 20%(1KHz)
Physical Specification
Chassis Size: 35 x 35mm
Motor Height: 52mm
Axis Diameter: ?5mm
Rod Length: 24mm
D-cut Length: 15mm
Number of Cables: 4
Cable Length: 400mm
Weight: 290g
Connection
A+ Black
A- Green
B+ Red
B- Blue
For more information please contact us.
The item you will receive may differ in some features from the one shown in the photo, depending on the production batch. Despite this, the functionality is maintained. - Questions(FAQs)
I driver di ultima generazione (come i TMC) utilizzano algoritmi avanzati per gestire la corrente del motore, riducendo drasticamente il rumore e le vibrazioni durante il movimento. Questo non solo rende la macchina più silenziosa, ma migliora anche la qualità della superficie nei lavori di stampa 3D o fresatura.
Certamente. Le nostre schede sono compatibili con i firmware più diffusi (come Marlin, GRBL o RepRapFirmware) e possono essere configurate per gestire diversi tipi di cinematica, come assi cartesiani, Delta o CoreXY.
In un ambiente industriale, è fondamentale utilizzare cavi schermati, dissipatori di calore sui driver e alloggiare le schede in case metallici messi a terra. Molti dei nostri componenti sono già progettati con filtri integrati per minimizzare le interferenze.
