This small board facilitates the wiring of the z-endstop for the printer Voron.
The fully assembled PCB is supplied.

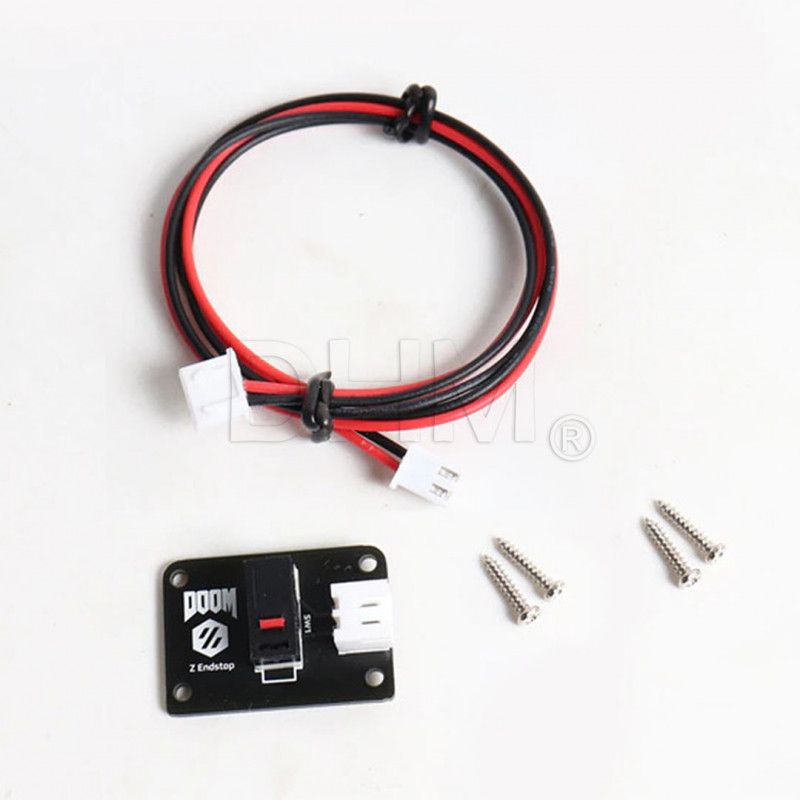

The components provided (separately or assembled) are:
- 1 A 125V AC microswitch
- 2-pin JST connector
The endstop already comes with 40 cm cable and mounting screws.
It can be easily combined with the PCB Voron XY Microswitch Endstop, the PCB Voron XY Hall Effect, and the PCB Voron Afterburner .
For proper mounting on the printer Voron if the PCB endstop has a toggle this must be removed.
You can use a narrow-nose pliers and apply light force to remove it.
Self-tapping screws for assembly are also provided.
More information is available on GitHub:
https://github.com/hartk1213/Voron-Hardware/tree/9d7398a639b2ad8459318e164e67fb315118936b/Microswitch_Z_Endstop
The item you receive may differ in some features from the one depicted in the photo, depending on the production batch. Despite this, functionality is maintained.
