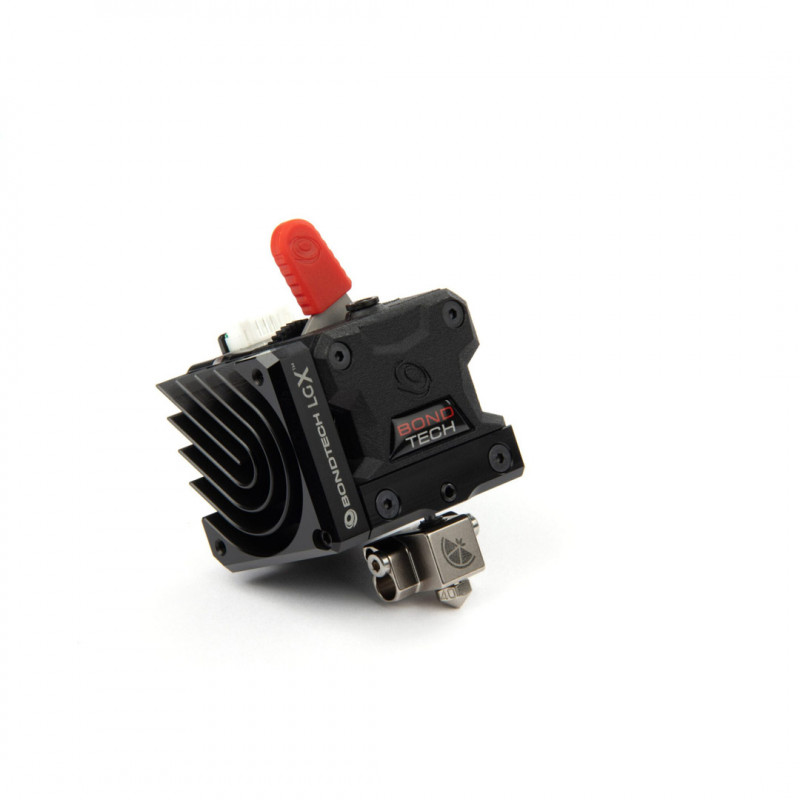

LGX Shortcut Copperhead Printhead - Bondtech

The LGX Shortcut Copperhead printhead is a special unit that includes the LGX Large Gears extruder and thehotend LGX Shortcut Short Filament Path Hotend based Copperhead, featuring high material compatibility and flexibility.
Its main feature is a 27 mm shorter filament path than the standard screw-mountedhotend Copperhead. This LGX printhead supports only 1.75 mm filament.

Designed to be flexible
Thehotend LGX Shortcut Copperhead includes a reversible heat sink that can be installed on the left or right side of the cooling block. The heatsink also includes the hole pattern for attaching 40×40 fans.

Cooling of theheatbreak
According to tests, one 4010 fan is sufficient to cool the block and the cold zone ofheatbreak, even with a small contact surface area.
For applications where additional cooling is needed, try using a 4020 fan or 2 LGX heatsinks, one on each side.

Key advantages

• Allows you to work with all available materials
• Enables faster printing of flexible and soft materials
• Is small and lightweight
• Allows mounting in many different ways

Compatible nozzles
The block included with this product is compatible with standard RepRap nozzles, such as:

• Standard brass Bondtech
• Standard coated brass Bondtech
• CHT coated brass Bondtech
• BridgeMaster (copper) Slice Engineering
• Vanadium steel (for abrasive filaments) Slice Engineering

Package contains:
1 x LGX Large Gears eXtruder - Bondtech
1 x LGX Shortcut Copperhead Hotend - Bondtech
