BAT85 200mA 30V Schottky diode for small signals Discrete semiconductors 09070148 DHM

Add to Compare

Product Sheet

Please login to Download PDF

Add to Project

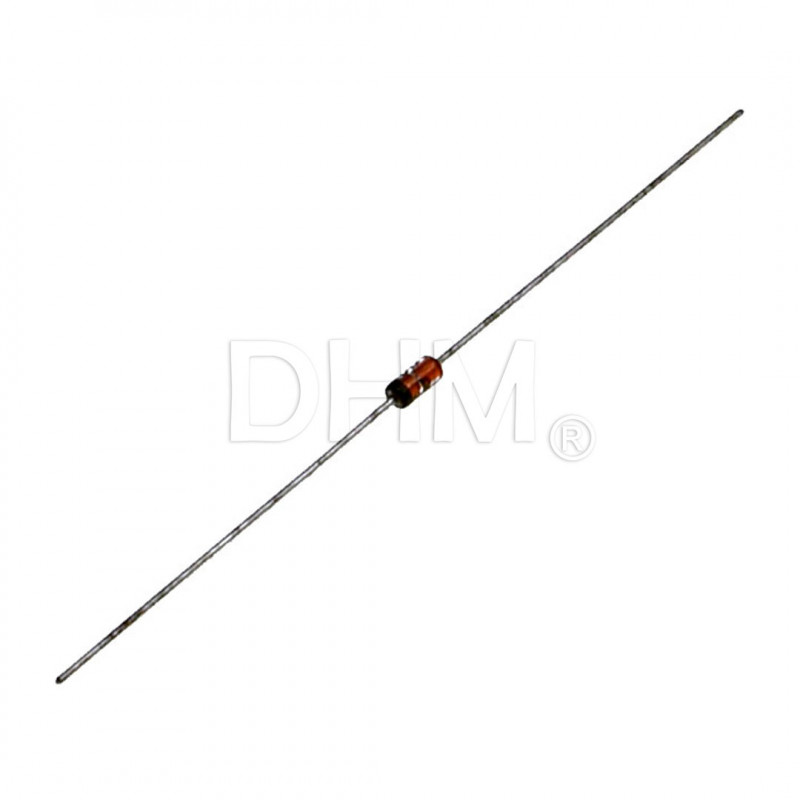

BAT85 200mA 30V Schottky diode for small signals

Name: BAT85 200mA 30V Schottky diode for small signals
Brand: DHM
SKU: 09070148
Price: 2.34 EUR
Availability: InStock

Reference: 09070148

€2.34

VAT included Shipping excluded

Price from €1.17

Immediate Availability

Dispatch in 24/48H

Volume discounts

Quantity	Price
5 +	€2.27
10 +	€2.23
20 +	€2.11
50 +	€1.76
100 +	€1.17

Product Details
Brand DHM
Reference 09070148
-- Stocks: Immediate Availability *

*Regular shipments throughout the country
Description
Package Contains: 1 x Diode BAT85

Configuration: Single
Direct average peak current (If(AV)): 200 mA
Max. repetitive reverse voltage (Vrrm): 30V
Direct voltage (Vf): 800 mV
Max. reverse current: 2 uA
Non-repetitive peak current (Itsm): 5 A
Minimum working temperature: - 65 C
Maximum working temperature: + 125 C
Package type: DO-34-2
Pin: 2
Mounting type: Feed-through
Package: Tape and coil
Thermal resistance: 300 W/°C

This diode can be used in Duet3D boards-especially Duet WiFi/Ethernet revision 1.03 or earlier-to connect a normally open NPN inductive or capacitive sensor.

Connect the output wire of the sensor to the cathode of a diode, and the anode of the diode to the IN pin of the Z probe. The diode should be a small-signal Schottky diode such as BAT43 or BAT85.

It can also be used for other boards, such as BIGTREETECH Octopus.
Read more
For more information please contact us.

The item you receive may differ in some features from the one depicted in the photo, depending on the production batch. Despite this, functionality is maintained.
