BMG-X2 Extruder - Bondtech

Bondtech BMG-X2 is based on the BMG design that uses a 3:1 internal gear ratio along with precision CNC machined hardened steel and coated drive gears to give you a compact power plant for all your multi extrusion applications. High resolution prints with small nozzles or high flow prints with large nozzles the optimized gear ratio combined with industry leading drive gears provides unprecedented thrust power and lightning fast retractions in a lightweight and compact dual extrusion package.

NOTICE NOT
INCLUDED in this product: aluminum brackets, Hotends, cartridges, thermistors and related cables.
INCLUDED in this product: 2x NEMA 17 Pancake Stepper Motor; 2x JST-XH6 to PC2510 700mm Cable
We recommend using the following stepper motor with this extruder: 25mm NEMA17 Pancake Stepper Motor

Bondtech Dual-Drive
The unique Dual-Drive technology provides uninterrupted material flow even under the most demanding conditions.




Multi-Material Capability
The new BMG extruder feeds all material with high reliability, from slippery nylons and soft TPU / TPE filaments to highly rigid and sometimes brittle carbon-filled high-strength materials.
The extruder is designed for 1.75 mm filaments, but has been tested to ensure filament performance from 1.5 mm up to 2.0 mm allowing for high reliability regardless of the tolerance of the filament used. The filament path is fully guided throughout the extruder housing and the housing maintains tight tolerances for the drive gears mitigating the possibility of filament jams when the hotend experiences increased back pressure or highly flexible filaments are used.

Adjustable Tension
Screw tensioners allow the user to fine-tune the pressure exerted by the drive gears on the filament.
This gives you the ability to adjust according to your preferences and optimize for the type of material you're using.

Quick-Release
To be able to make material changes in a snap, simply activate the Quick-Release lever to release the tension and pull the material to be changed out of the extruder, keep it activated and insert the new material.


Included Stepper Motors
The included high-powered Nema17 pancake motors provide high torque and low weight.

Flexible mounting options

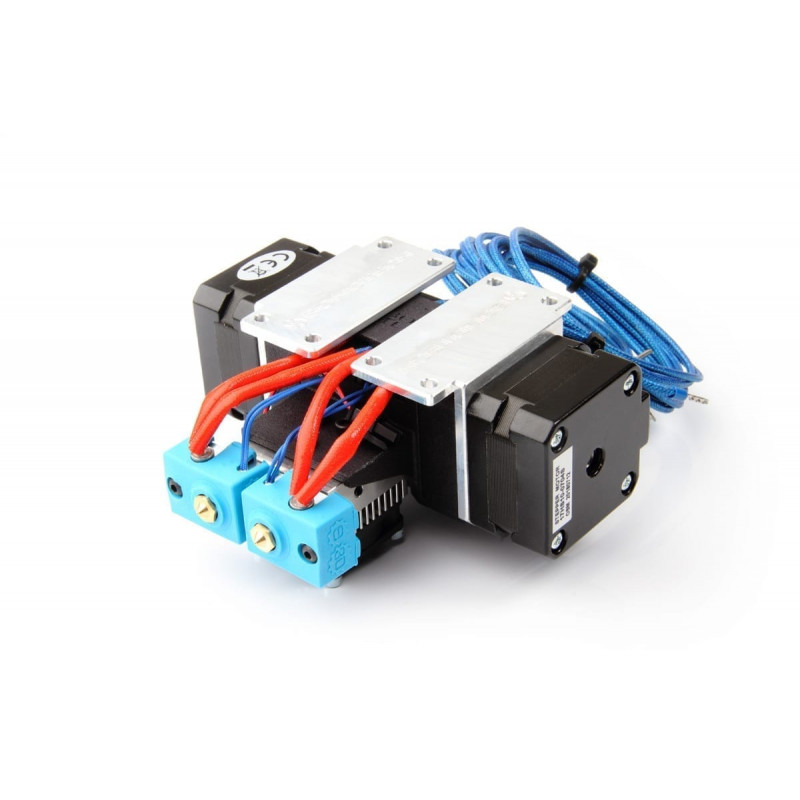

Our standard CNC machined aluminum mounting bracket can be used to mount the extruder as pictured or a simple 3d printed bracket can be used.
The extruder is delivered without brackets.
Additional information
Total weight with E3d-Chimera +: 620g
E-step value: 415
