Introduction
Picking the wrong aluminium extrusion means oversized, expensive, bulky frames — or, the opposite, flimsy structures that flex and vibrate under load. The most critical selection parameter is the slot: 5, 6, 8 or 10 mm. Stiffness, allowable load, accessory compatibility and overall footprint all depend on it.
T-slot aluminium profiles have become the standard for workbenches, machine frames, automation, robot cells, assembly stations and 3D printers. Knowing how to navigate the available series prevents design mistakes and speeds up procurement.
This guide explains how to choose the correct series based on load, application and accessories, with a direct comparison table across the common series.

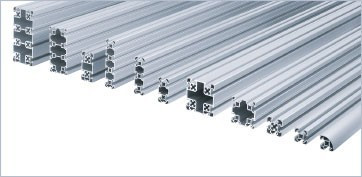

What t-slot aluminium profiles are
T-slot aluminium profiles are extruded bars in aluminium alloy (typically 6063 or 6082) with T-shaped slots along their faces. The slots hold T-nuts, brackets and accessories without drilling, building disassemblable and reconfigurable structures.
Most common series in Europe
• Slot 5: 15×15 mm profiles, for micro-applications, light fixtures, prototypes
• Slot 6: 20×20 mm and multiples, for light automation, 3D printers, benches
• Slot 8: 30×30 mm and multiples, the standard for machines and automation cells
• Slot 10: 40×40 mm and above, for heavy load-bearing structures and robotics
Comparison table
|
Slot |
Base section |
Typical load |
Applications |
|
Slot 5 |
15×15 mm |
Light |
Prototypes, jigs, manual fixtures |
|
Slot 6 |
20×20 mm |
Medium-light |
3D printers, benches, light automation |
|
Slot 8 |
30×30 mm |
Medium-heavy |
Machines, automation cells, guards |
|
Slot 10 |
40×40 mm+ |
Heavy |
Robotics, load-bearing structures, lines |
Industrial benefits
• Reconfigurability: the frame is modified without welding or redesign
• Faster assembly than welded or traditional bolted structures
• Standardisation: brackets and connectors are interchangeable within a series
• Anodised finish: corrosion resistance without painting
Practical applications
Automation and production lines
For robot cells and assembly lines, slot 8 or slot 10 is typical, sized to robot payload and accelerations. The frame must resist motion-induced vibration without transferring it to the process.
3D printing
Medium-format 3D printers (CoreXY, Voron) mostly use slot 6 for low weight and compact footprint. Large or industrial printers move up to slot 8.
Mistakes to avoid
• Mixing different series in the same frame: accessories are not compatible
• Undersizing the series to save on initial cost: the structure ends up unstable
• Ignoring the anodised finish in humid or saline environments
Case study: quality-control cell frame
A manufacturer needed an inspection station with a fixed camera and a part rest. The first slot-6 design showed residual vibration of the rest under the camera, hurting measurement repeatability. Switching the main uprights to slot 8 while keeping slot 6 for light cross-members reached the required stability with a contained cost increase.
FAQ
What does slot 6 or slot 8 mean on aluminium profiles?
It is the width in millimetres of the T-slot on the profile faces. The slot sets the compatible T-nut size and identifies the series (slot 6 / slot 8).
Can I mix slot 6 and slot 8 profiles in one frame?
Technically yes, but brackets, plates and nuts are not interchangeable. It is discouraged for standardisation reasons, except at specific nodes where a slot change solves a structural problem.
Which alloy is used for extruded profiles?
Typically 6063 T5 or 6082 T6. The 6063 offers good extrudability and finish; the 6082 higher mechanical performance. For standard use, anodised 6063 is enough.
Can I order profiles cut to size with no minimum?
Yes, an online configurator lets you order single bars cut to the millimetre, with a typical ±0.5 mm length tolerance.
Conclusion
Choosing the slot is the first step of correct modular design. Defining load, application and accessories before ordering avoids costly redesign. Configuring cut-to-size profiles online shortens procurement and gets material to the shop ready to assemble.
