Universal Proto-Board PCBs - 3 pack - 3cm x 7cm Adafruit 19040468 Adafruit

Add to Compare

Product Sheet

Please login to Download PDF

Add to Project

Info! You can also add a product to your project that is not available for purchase.

Universal Proto-Board PCBs - 3 pack - 3cm x 7cm

Name: Universal Proto-Board PCBs - 3 pack - 3cm x 7cm
Brand: Adafruit
SKU: 19040468
Price: 3.98 EUR
Availability: OutOfStock

Reference: 19040468

€3.98

VAT included Shipping excluded

Currently not available

Product Details
Brand Adafruit
Reference 19040468
-- Stocks: Immediate Availability *

*Regular shipments throughout the country
Description

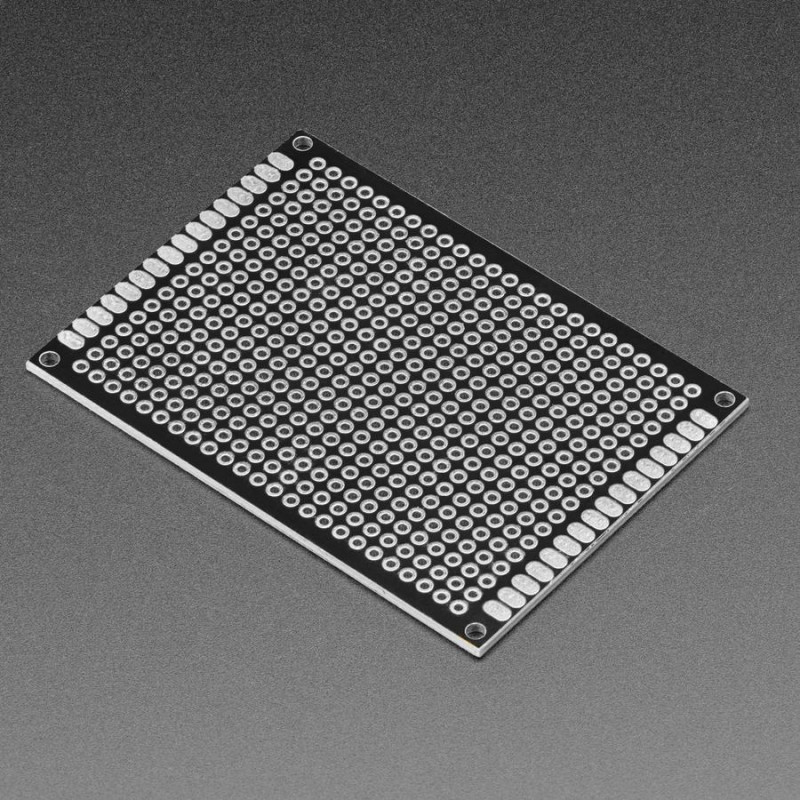

Here's a handy 3-pack of Proto-board PCBs in Adafruit Black. Both sides have a black silkscreen with some row/column markings.
Note that these don't have any traces between the PCB holes, you would normally bend over a thru-hole lead to create connections. They're also good for just plain mechanical work because they are made of strong FR4
There are also four mounting holes so you can attach the PCB to your project box.
These are affordable and of good quality so Adafruit decided to put them in a pack of 3.
Specifications

5cm x 7cm proto-board contains 18 X lines by 24 Y lines totaling 432 holes.

4cm x 6cm proto-board contains 14 X lines and 20 Y lines totaling 280 holes.

3cm x 7cm proto-board contains 10 X lines by 24 Y lines totaling 240 holes.

2cm x 8cm proto-board contains 6 X lines by 28 Y lines totaling 168 holes.
