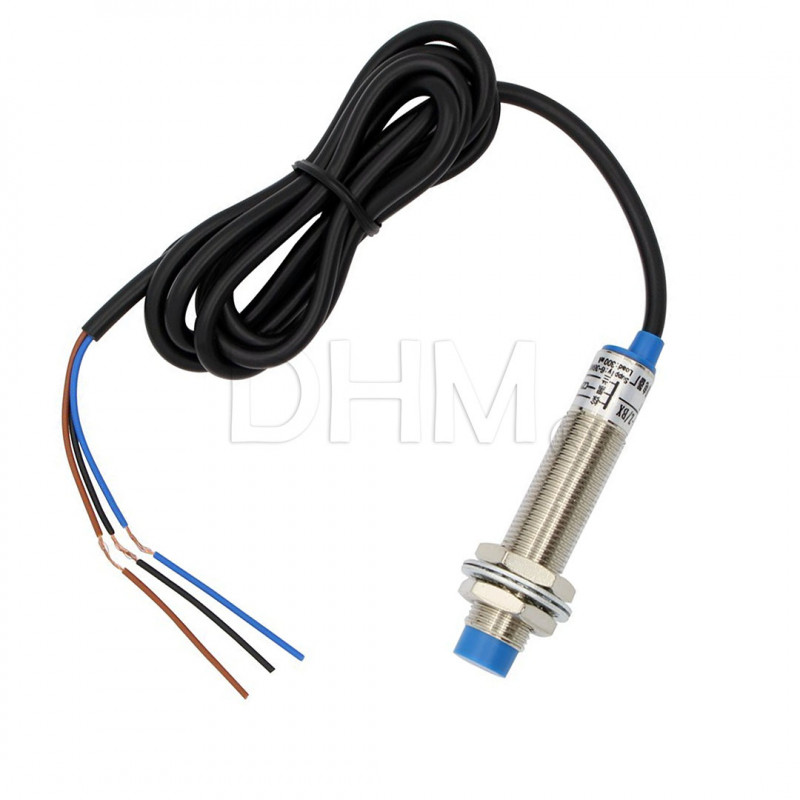

The package contains: 1 x Inductive proximity sensor LJ12a3-4-z / bx
The inductive proximity sensor LJ12a3-4-z / bx allows to activate an output when detecting the presence of a metal or ferromagnetic materials. It uses the inductive effect and can also detect aluminum, so this sensor is suitable for replacing the classic limit switches in the Z axis of 3D printers or small CNCs. Can be used for self-leveling of the printing plan (managed by the appropriate programs). Two washers and two nuts are provided to allow fastening. The activation can easily be checked because it is signaled by a red led.
The item that you can get for certain features differ from the one shown in the photo, depending on the production lot. However, the functionality is retained. The description of this item has been provided by automatic translation. If you have any questions, please do not hesitate to contact us.
Current consumption: 200 mA (max 300 mA) - Output: NPN NO (normally open)
Power supply: 6-36 V DC - Detection distance: 4 mm
Cables: 3 cables (brown, blue, black) - Cable length: about 110 cm
Connections: brown wire (+), blue wire (-), black wire (OUT)
